Specification Sheet

92
SUPERPLAN XXL
inch mm inch mm inch mm inch mm inch mm inch mm inch mm
Model No. 438 438 408 408 410 410 429 429 412 412 433 433 435 435
External length a 35.43 900 27.56 700 29.53 750 35.43 900 39.37 1000 27.56 700 29.53 750
External width b 51.18 1300 55.12 1400 55.12 1400 55.12 1400 55.12 1400 59.06 1500 59.06 1500
Depth c 0.98 25 1.54 39 1.57 40 1.69 43 1.69 43 1.54 39 1.57 40
Internal length d 31.10 790 2.323 590 25.20 640 31.10 790 35.04 890 23.23 590 25.59 650
Internal width f 46.85 1190 50.79 1290 51.18 1300 50.79 1290 50.79 1290 50.79 1290 50.79 1290
Height of rim i 1.26 32 1.26 32 1.26 32 1.26 32 1.26 32 1.26 32 1.26 32
Distance tray edge to centre of drain hole k
1
; k
2
9.84; 7.87 250; 200 7.87 200 7.87 200 7.87 200 7.87 200 9.84; 7.87 250; 200 9.84; 7.87 250; 200
Diameter of drain hole m 3.54 90 3.54 90 3.54 90 3.54 90 3.54 90 3.54 90 3.54 90
Width of rim s
1
; s
2
4.13; 2.17 105; 55 2.17 55 1.97 50 2.17 55 2.17 55 4.13; 2.17 105; 55 4.13; 1.97 105; 50
Weight of the enamelled shower tray in lbs 68.34 57.32 61.73 72.75 79.37 59.52 66.14

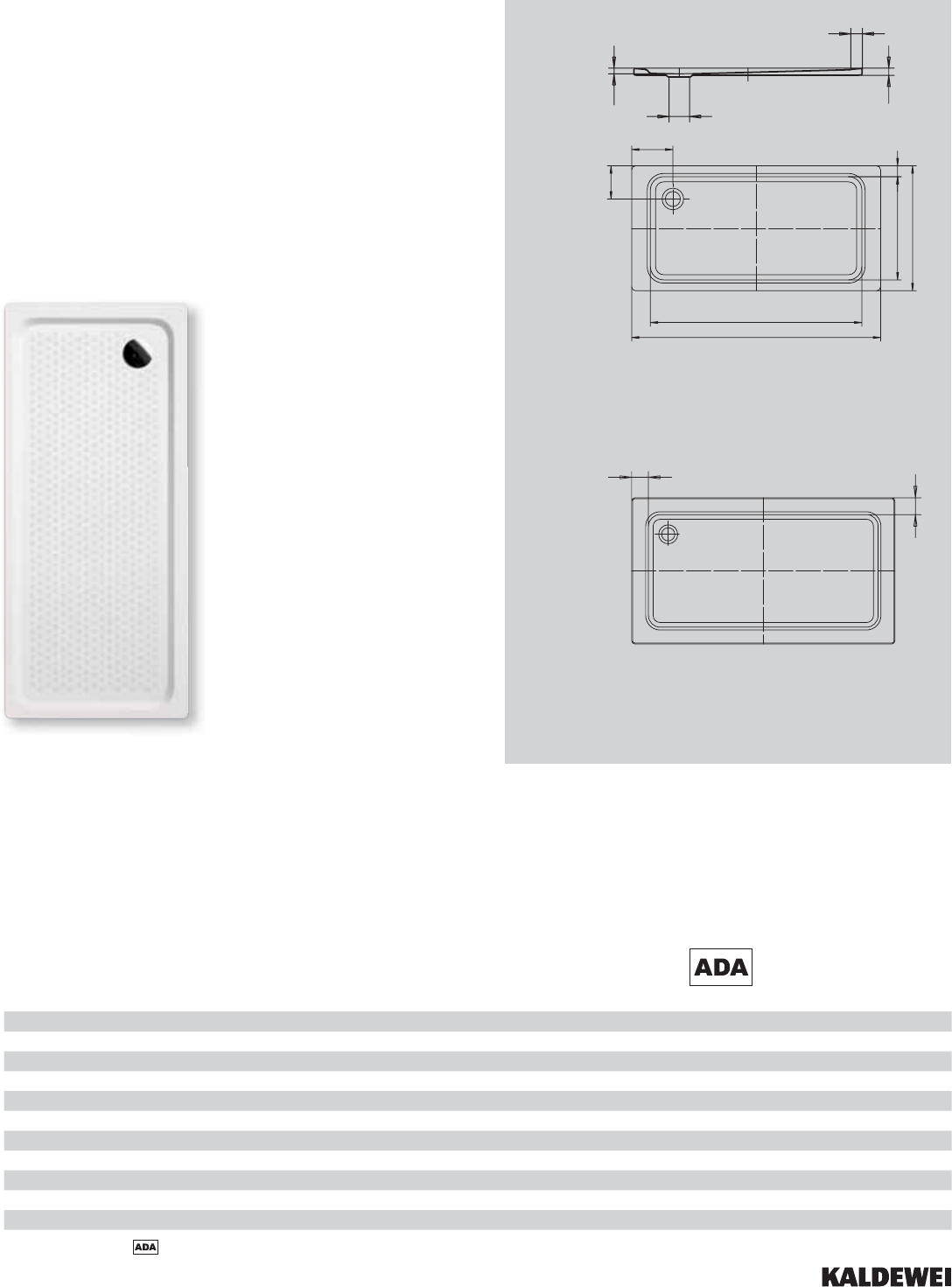

Mod. 433, 435, 438
b
a d
f
k
1
k
2
s
2
s
2
s
1

exclusive, elegant design

generous dimensions ideal for showering with a friend

shallow depth ideal for flush fitting and guarantees easy access

made of Kaldewei steel enamel 3.5 mm
c
i
s
m
Shower trays displaying will comply with the Americans with Disabilities Act
when installed per the requirements of the Accessibility Guidelines
Subject to technical alterations, tolerances and errors. Similar illustration.
