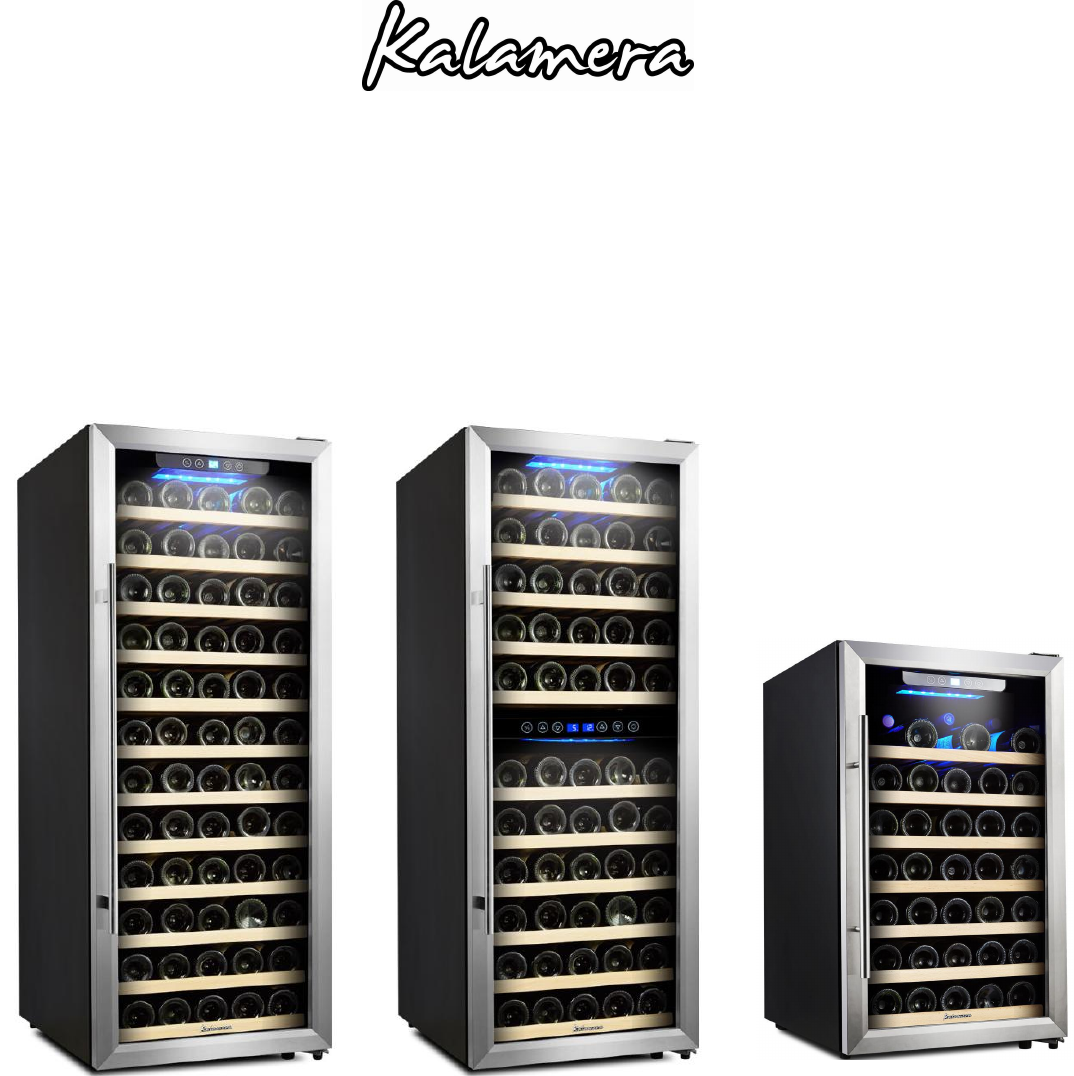

INSTRUCTION MANUAL Compressor Wine Cooler 80-Bottle KRC-85SZF 73-Bottle KRC-73DZF 52-Bottle KRC-52SZF Please read carefully and follow all safety rules and operating instructions.
Content 1. Your Wine Cooler ………………………………………………………………………………………… 3 2. Technical Dat a …………………………………………………………………………………………… 6 3. Safety Precautions…….……………………………………………………………………………………8 4. Important Precautions……………….……………………………………………………………………8 5. Installation Instructions………………………………………………………………………………….8 6. Operating Your Wine Cooler………………………………….…………………………………………..9 7. Care and Maintenance………………………………………………………………………………….10 8. Trouble Shootings………………………………………………………………………………………….10 9. Warranty……………..
Your Wine Cooler KRC-85SZF 1. Right Upper Hinge 2. Light Switch 3. Temperature Setting 4. Temperature Display 5. Temperature Setting 6. Temperature Switch 7. Light 8. Carbon Filter 9. Temperature Sensor 10. Fan 11. Exhaust Window 12. Shelf 13. Foot 14. Lower Hinge 15. Glass 16. Door Seal 17.
KRC-73DZF 1. Upper Hinge 2. Upper Zone Light 3. Upper Zone Temperature Sensor 4. Upper Zone Carbon Filter 5. Upper Zone Fan 6. Light Switch 7. Upper Zone Exhaust Window 8. Lower Zone Temperature Display 9. Temperature Switch 10. Upper Zone Temperature Display 11. Lower Zone Carton Filter KRC-52SZF 12. Lower Zone Light 13. Lower Zone Fan 14. Lower Zone Temperature Sensor 15. Lower Zone Exhaust Window 16. Shelf 17. Foot 18. Lower Hinge 19. Glass 20. Door Seal 21.
1. Right Upper Hinge 2. Light Switch 3. Temperature Setting 4. Temperature Display 5. Temperature Setting 6. Temperature Switch 7. Fan 8. Light 9. Temperature Sensor 10. Exhaust Window 11. Shelf 12. Carbon Filter 13. Foot 14. Lower Hinge 15. Glass 16. Door Seal 17.
Model No. KRC-85SZF KRC-73DZF Capacity 200L 200L Voltage 110-120V 110-120V Rated Current 1.2A 1.2A Frequency 60Hz 60Hz I I T/ST/N/SN T/ST/N/SN 90W 90W 0.79 KW.h/24h 1.24 KW.h/24h 40°F-66°F 40°F-50°F /50°F-66°F 120 lbs 120 lbs 150.33 lbs 150.33 lbs Product Size(W×H×D) 19.50 x 50.20 x 22.83 inches 19.50 x 50.20 x 22.83 inches Packing Size(W×H×D) 25.4 X 59.3×28.4 inches 25.4 X 59.3×28.4 inches Protection Class Climate Class Input Power Power Consumption(KW.
Electrical Circuit Diagram KRC-85SZF & KRC-52SZF Electrical Circuit Diagram KRC-73DZF -7-
Safety Precautions To reduce the risk of fire, electrical shock, or injury when using your appliance, follows these basic precautions; PLEASE READ all instructions before installing, operating, or servicing the appliance. Danger and Warning: Failure to follow this safety statement will result in severe personal injury or death, property or equipment damage. RISK OF CHILD ENTRAPMENT.
Spare parts details: Spare parts Picture Use Screw *2 For the handle installation. Gasket *2 For the handle installation. Operating Your Wine Cooler The Control Panel: KRC-85SZF & KRC-52SZF How to use the press-buttons on the Display Panel: To control the temperature, press “UP” or “DOWN” button. Each press would adjust the temperature by 1°C between 5~18°C or 1°F between 40~66°F. To turn on or off the internal LED lighting, press “LIGHT” button on the right side.
To control the upper zone temperature, press “UP” or “DOWN” button on the left side. Each press would adjust the temperature by 1°C between 5~10°C or 1°F between 40~50°F. To control the lower zone temperature, press “UP” or “DOWN” button on the right side. Each press would adjust the temperature by 1°C between 10~18°C or 1°F between 50~66°F. To turn on or off the internal LED lighting, press “LIGHT” button on the right side.
The door will not close properly. The wine cooler is not leveled. The doors were reversed and not properly installed. The seal is weak. The shaves out of position. LED could not display. Main control board does not work. PCB Problem. There is some problem with the plug. LED display error. Weak quality of display. Temperature point is out off. Buttons are not functional. Temperature controller panel is damaged.
Full One Year Warranty Warranty Terms: The manufacture warrants to the original purchaser of this product that the product will be free from manufacturing defects in workmanship and material for a period of 1 year from the date of original purchase when this major appliance is operated and maintained according to instructions attached to or furnished with the product.
To obtain service or information, please call 866-554-6688 or send email to service@kalamera.com Product contents and specifications may change without notice. Copyright © 2016 Kalamera Products www.kalamera.
