PLATE INSTALLATION

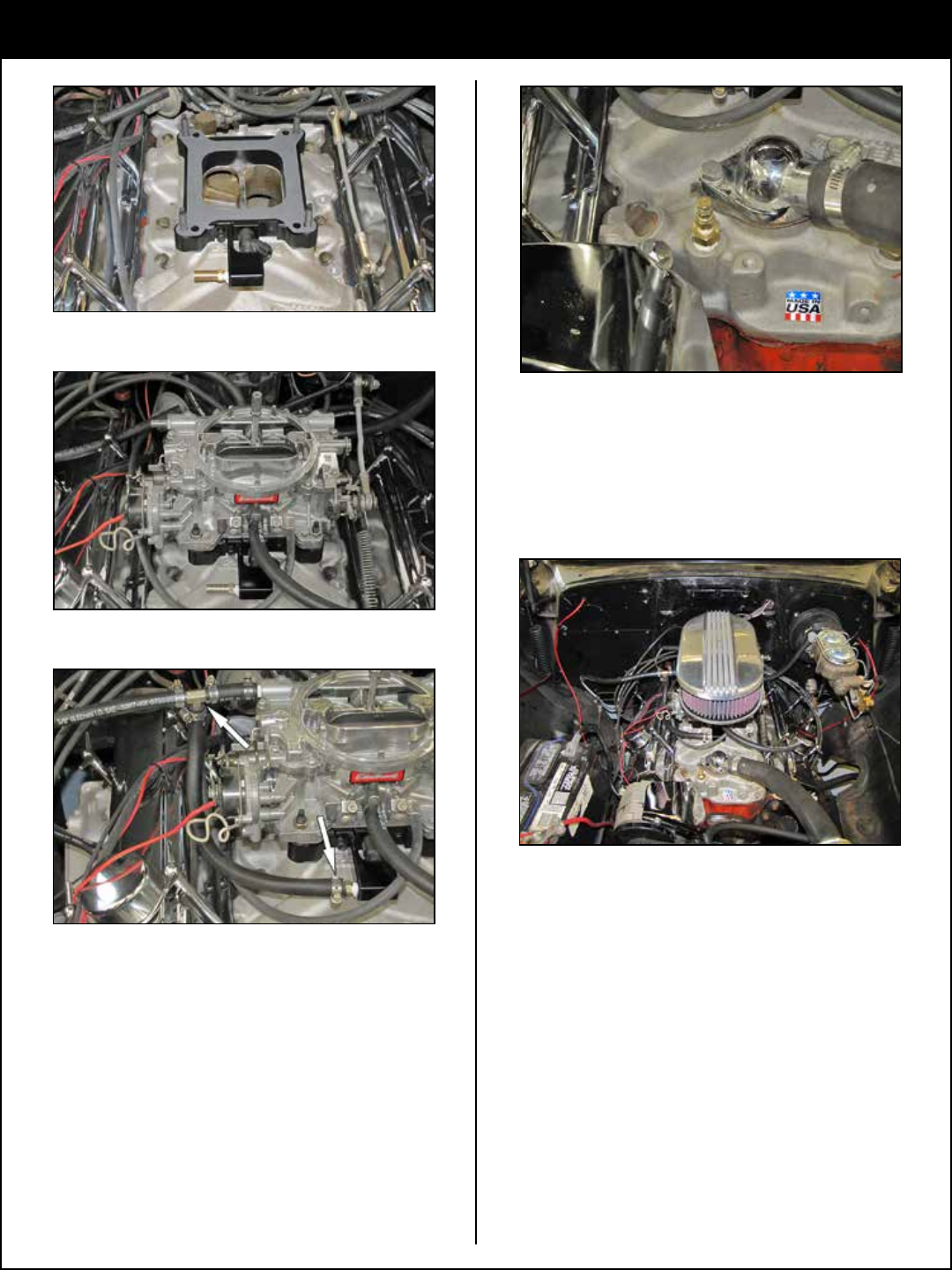

5. Install the assembled injector plate and new
carburetor base gaskets onto the intake manifold.
8. If you desire to connect a coolant temperature
sensor to the system, nd a suitable location in the
cooling system to install the coolant temperature
sensor. Usually this will be in the intake manifold
near the thermostat housing.
NOTE: A coolant temperature sensor is not
provided. An AUTOMETER
®
temperature sensor
PN 2258 will need to be purchased separately.
6. Install the carburetor and reconnect the throttle
linkage, vacuum lines and electrical connections.
9. Reinstall the air lter assembly.
7. Install a TEE into the fuel line. Using a suitable
fuel hose, connect the TEE to the injector supply.
NOTE: See diagram on page 6.
NOTE: On systems that use barb style ttings,
bard ttings and fuel line will need to be
purchased separately. On systems that use AN
style ttings, AN ttings and fuel lines need to
be purchased separately. ALWAYS use hose
specic for automotive fuels as fuel line, not
vacuum line.
NOTE 2: The ECI system can operate on as low
as 5psi fuel pressure. If you will be using an
electric fuel pump, it is recommended to use
Pre-regulated fuel pressure directly from the
fuel pump as the source for the ECI system.
