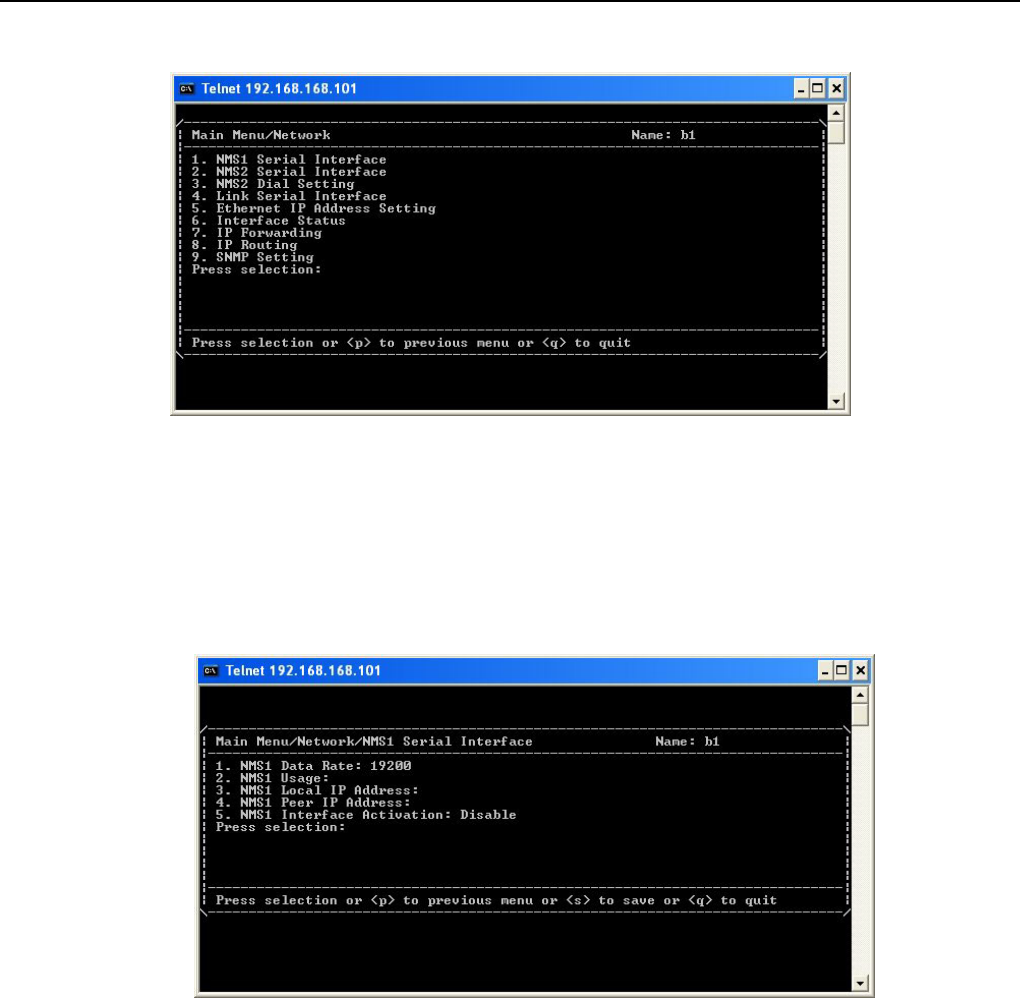

Figure 8-2 Network
9 After you made any configuration of change in the item, you should restart to make the setting or change
into effective.
8.1.1 NMS1 Serial Interface
Figure 8-3 NMS1 Serial Interface
In this subpage, you could configure information of NMS1 interface.
NMS1 Data Rate: Data rate of NMS1 setting. There are 5 optional speeds: 9600, 19200, 38400, 57600,
115200. Default value is 19200.
9 We recommend that you should set the value to 115200.
NMS1 Usage: There are 3 optional usages: Master Null Modem, Slave Null Modem, Connect with Computer.
When NMS1 port establishes PPP connection with other equipments, you should choose value “Master Null
Modem” in one end of the connection and “Slave Null Modem” in the other end. The NMS1 IP of equipment
