10.5 ODU IF & RF Status
10.5.1 5.8GHz Status

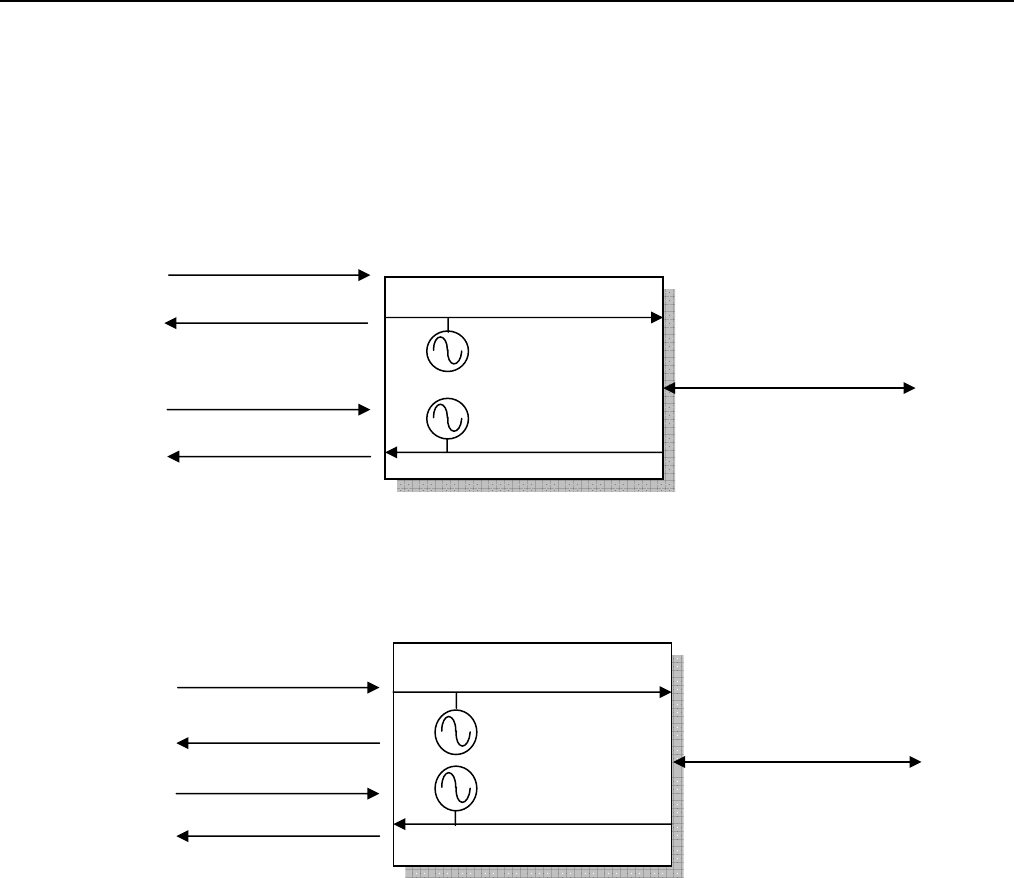

Figure 10-1 Side A IF & RF Status
Figure 10-2 Side B IF & RF Status
Tx: 5.814~5.846GHz
ODU Side A: RF Unit
Rx: 5.730~5762GHz
IF 310MHz
IF 70M
-48V/ 0.5A
Monitor 11.0592MHz
ODU Side B: RF Unit
Tx: 5.730~5.762GHz
Rx: 5.814~5.846GHz
IF 310MHz
IF 70M
-48V/ 0.5A
Monitor 11.0592MHz
