9 Management Application Structure
IDU is an embedded system with routing function. It provides various managerial interfaces and abundant
method for management which is convenient for remote access. This chapter introduces how to deploy
network topology.
9.1 Managment via Local Equipment(Normal)
The following diagram is most popular in topology. The rest of the diagrams skip ODU and take IDU as the
whole system.
9 You should connect computer and ETH interface via cross-over cable.

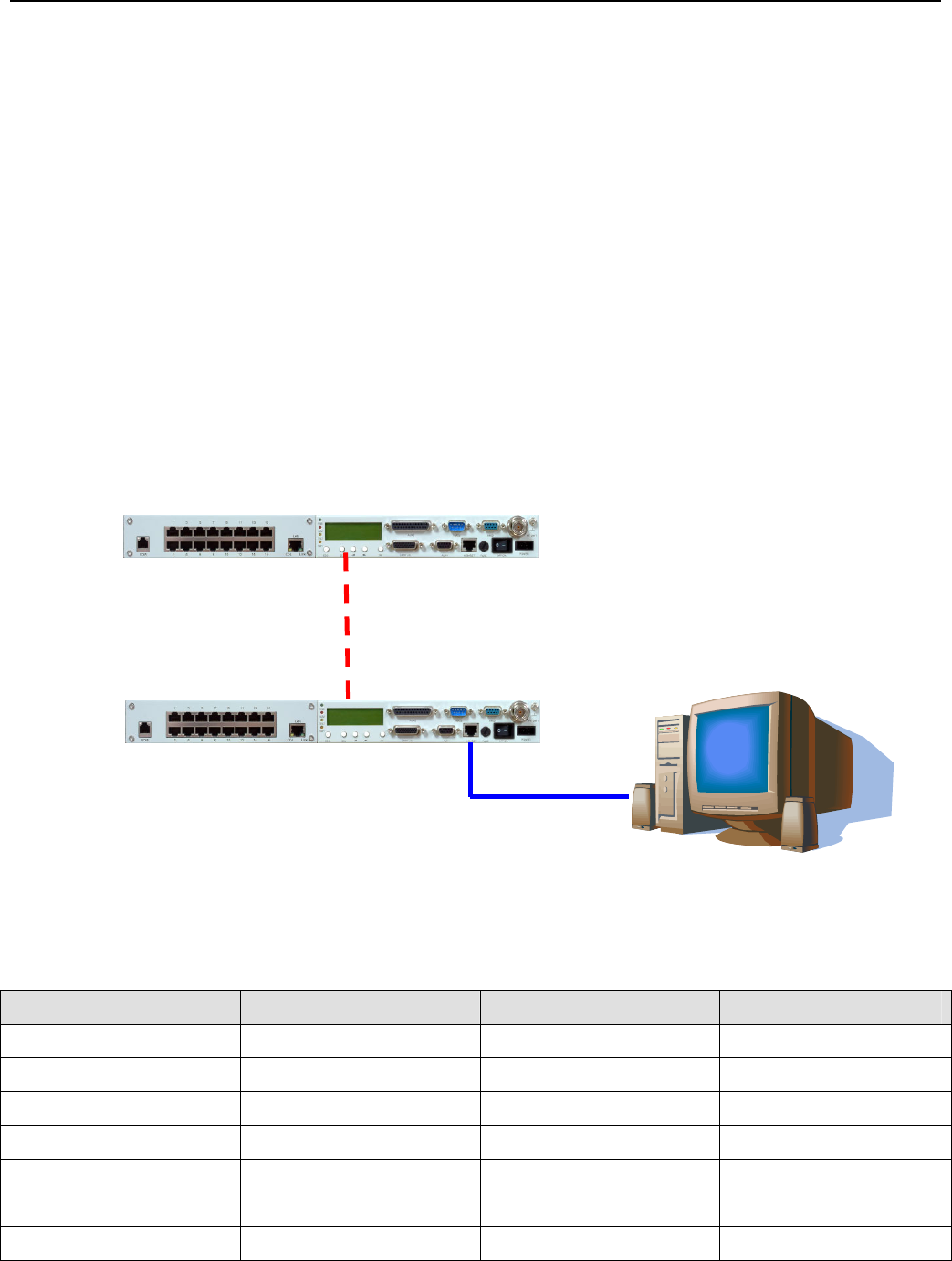

Figure 9-1 Managment via Local Equipment(Normal)
Relative configuration parameters list below:
Table 9-1 Example for managerial application(1)
Item Modem 1 Modem 2 Note
ETH(10BaseT) IP
192.168.168.1 192.168.100.1 Refer to section 8.1.5
ETH(10BaseT) Mask
255.255.255.0 255.255.255.0 Refer to section 8.1.5
Link Data Rate
19200 19200 Refer to section 8.1.4
Link Usage
Master Modem Slave Modem Refer to section 8.1.4
Link Local IP
10.0.0.1 10.0.0.2 Refer to section 8.1.4
Link Peer IP
10.0.0.2 10.0.0.1 Refer to section 8.1.4
Link Interface Activation
Enable Enable Refer to section 8.1.4
ETH
RF Link Connection
Computer for monitor
Modem 1
Modem 2
