8.2.7 LAN

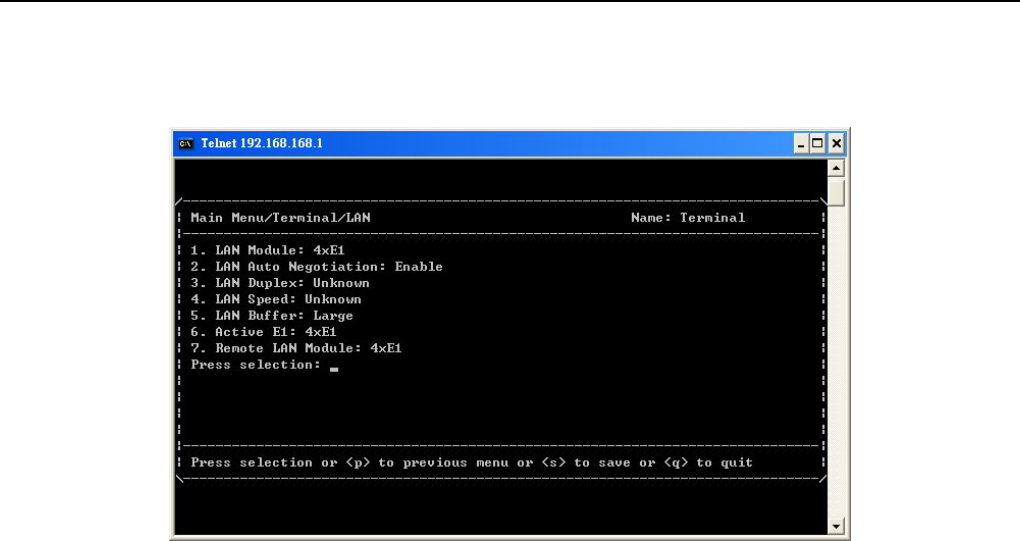

Figure 8-22 LAN
This subpage allows you to set the configurations of LAN. (This subpage displays with only E1+LAN product)
LAN Module: Activate E1 interface number which should be used for Ethernet transmission. Following items is
for option:Disable/1E1/2E1/3E1/4E1. When it is disabled, LAN function is closed and link LED light is off. If it
set to be 1E1/2E1/3E1/4E1, system will transfer E1 to Ethernet transmission.
9 If you choose 1E1, system would transfer last E1 to Ethernet transmission. If 2E1, system would transfer
last two E1 to Ethernet transmission and so on.
LAN Auto Negotiation: Activate/close Ethernet auto-negotiation function.
LAN Duplex: The configuration of Ethernet interface duplex.
LAN Speed: The configuration of Ethernet interface speed.
LAN Buffer: The configuration of Ethernet interface buffer.
Active E1: Display actual E1 interface number which has been transferred to Ethernet transmission.
9 If the configured interface number is different, the smaller number would be set to transmit.
Remote LAN Module: Display remote LAN interface status.
