User's Manual

Textmenu Details
E1 Spread Spectrum Radios
8-14
8.2.5 Cross Connect

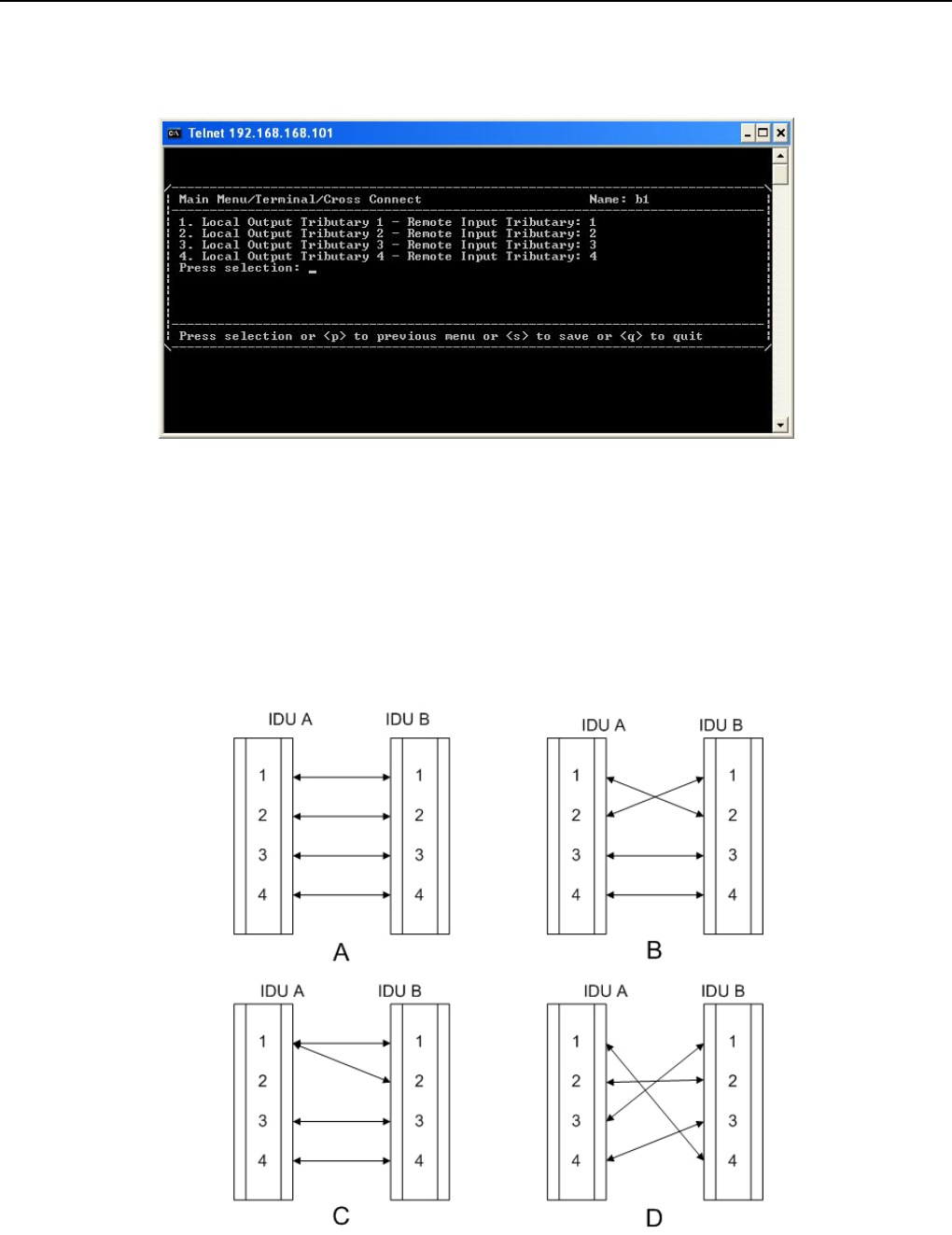

Figure 8-19 Cross Connect
This subpage allows you to set E1 cross-over connection settings.
9 With the need of adjusting the controlling room channel, the local and remote end E1 Interface have
certain asymmetric variation. The system administrator need not have to manually switch the lines. The
following diagram shows the 4E1 equipment cross connection between local end, IDU A, and remote end,
IDU B.
Figure 8-20 Cross Connection Diagram
