User's Manual

Textmenu Details
E1 Spread Spectrum Radios
8-12
Input Voltage: This item shows the input power voltage.
IDU Temperature: This item shows IDU’s actual temperature condition.
IDU Temperature Alarm High Threshold: This item shows IDU’s upper temperature limit setting.
IDU Temperature Alarm Low Threshold: This item shows IDU’s lower temperature limit setting.
9 The temperature threshold of IDU fixes to -5~55℃。
After you make any configuration, you should select <s> to save into memory. If the configuration failed, the
error will display on window. The status of window will not fresh immediately. You should quit and reenter the
windows for fresh information.
8.2.3 Link

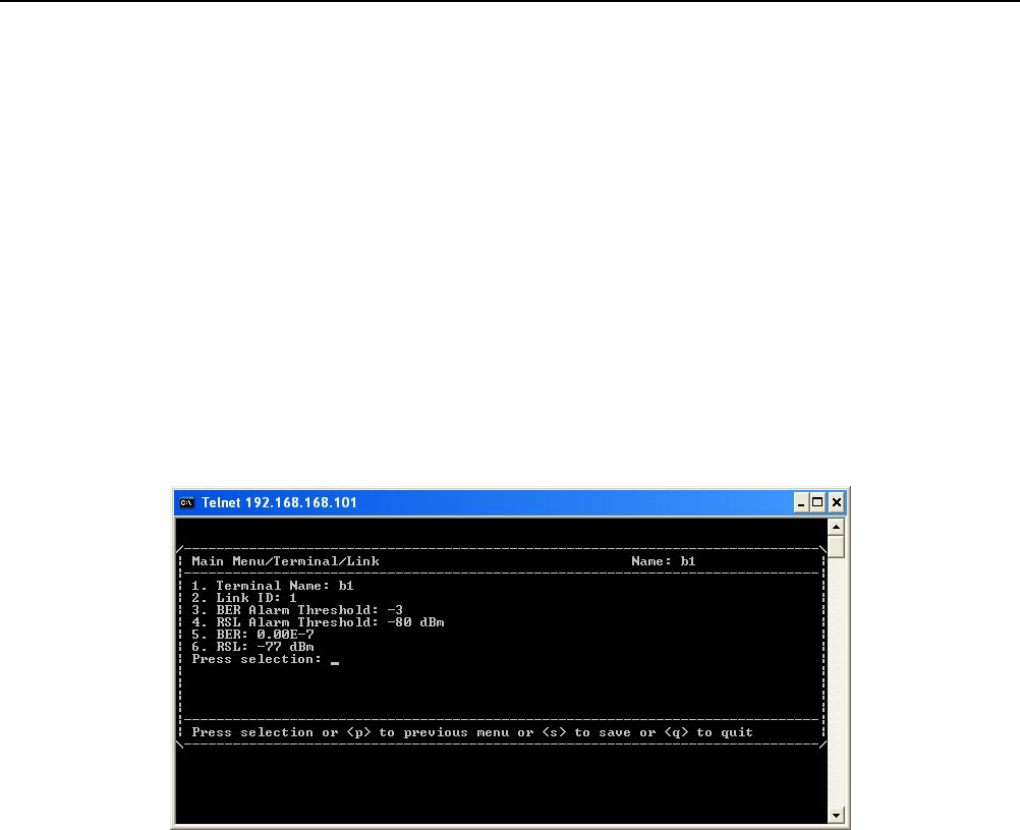

Figure 8-17 Link
In this subpage, you could set the configuration or check the status of Link.
Terminal Name: This item allows you to set the name of terminal. It will be shown in the upper right side of
textmenu. The length is up to 15 characters which allow only letters, digits, space, line, underline, spot and the
first character should be letter.
Link ID: This item allows you to set the number of Link ID.
BER Alarm Threshold: This item allows you to set the threshold of BER(Bit Error Rate) alarm. There are four
options: “-3”, “-4”, ”-5”, and ”-6” which mean 10
-3
, 10
-4
, 10
-5
, and 10
-6
.
RSL Alarm Threshold: This item allows you to set the threshold of RSL(Receive Signal Level) alarm. The
optional range is from “-50” dBm to “-80” dBm.
BER: This item shows current BER.
RSL: This item shows current RSL.
