User's Manual

Textmenu Details
E1 Spread Spectrum Radios
8-11
RF Channel: This item allows you to set RF channel settings.
Tx Frequency: The display of transmitting frequency.
Rx Frequency: The display of receiving frequency.
SSPA: This item allows you to set the Solid State Power Amplifier.
Actual Tx Power Level: This item shows the actual Tx power level.
Tx Max Level: This item shows maximum Tx power level.
Tx Min Level: This item shows minimum Tx power level.
Set Tx Power Level: This item allows you to set Tx output power level.
ODU Temperature: This item shows ODU’s actual temperature condition.
ODU Temperature Alarm High Threshold: This item shows ODU’s upper temperature limit setting.
ODU Temperature Alarm Low Threshold: This item shows ODU’s lower temperature limit setting.
9 The temperature threshold of ODU fixes to -30~80℃.
8.2.2 IDU

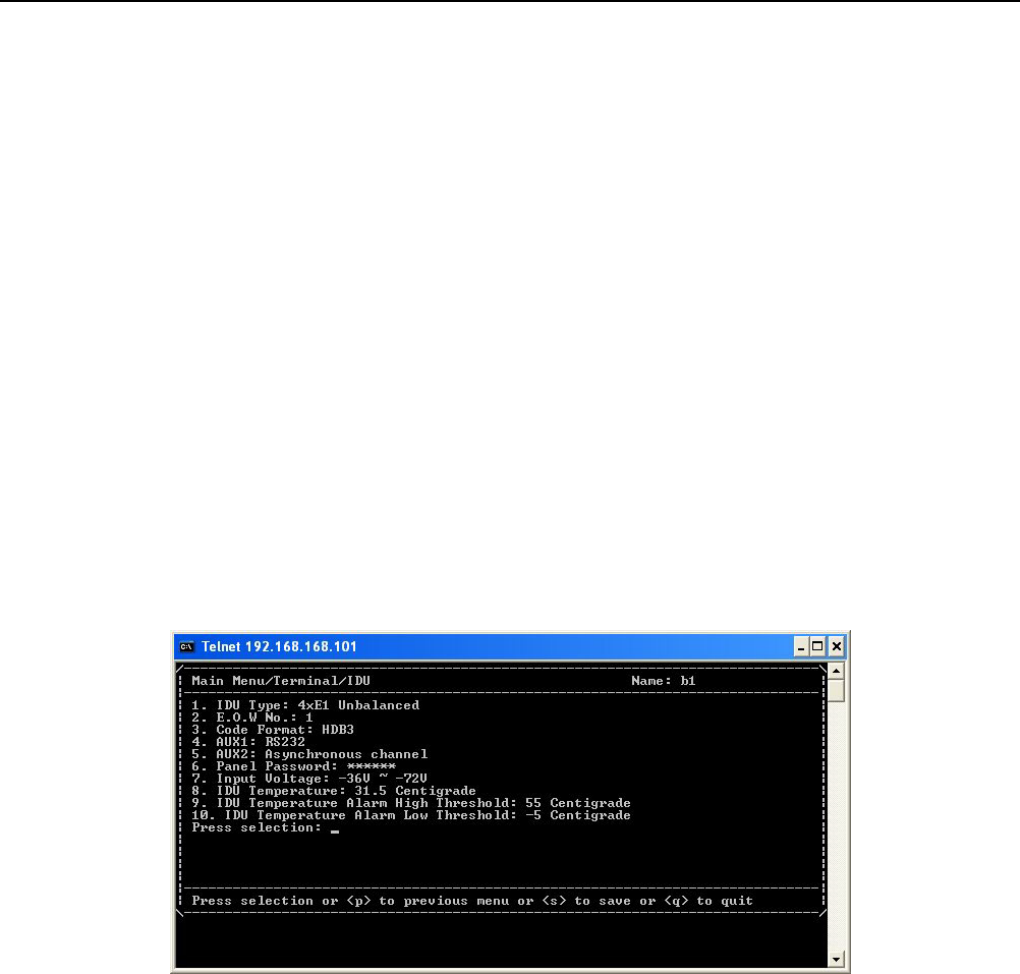

Figure 8-16 IDU
In this subpage, you could set the configuration or check the status of IDU.
IDU Type: This item displays the system capacity and interface type.
EOW No: This item shows Engineering OrderWire number. The range is between 1~255.
Code Format: This items show the setting of code format in E1 interface. There are two optionals:HDB3, and
AMI. The default value is “HDB3”.
AUX1: This item shows the protocol of AUX1. It has selections of “RS232” and “RS422”. The default value is
“RS232”.
AUX2: This item shows the connection type of AUX2. It has selections of “Asynchronous channel” and
“Synchronous channel”. The default value is “Asynchronous channel”.
Panel Password: The password setting of LCD panel. The default value is “000000”.
