User's Manual

Textmenu Details
E1 Spread Spectrum Radios
8-6
8.1.5 Ethernet IP Address Setting

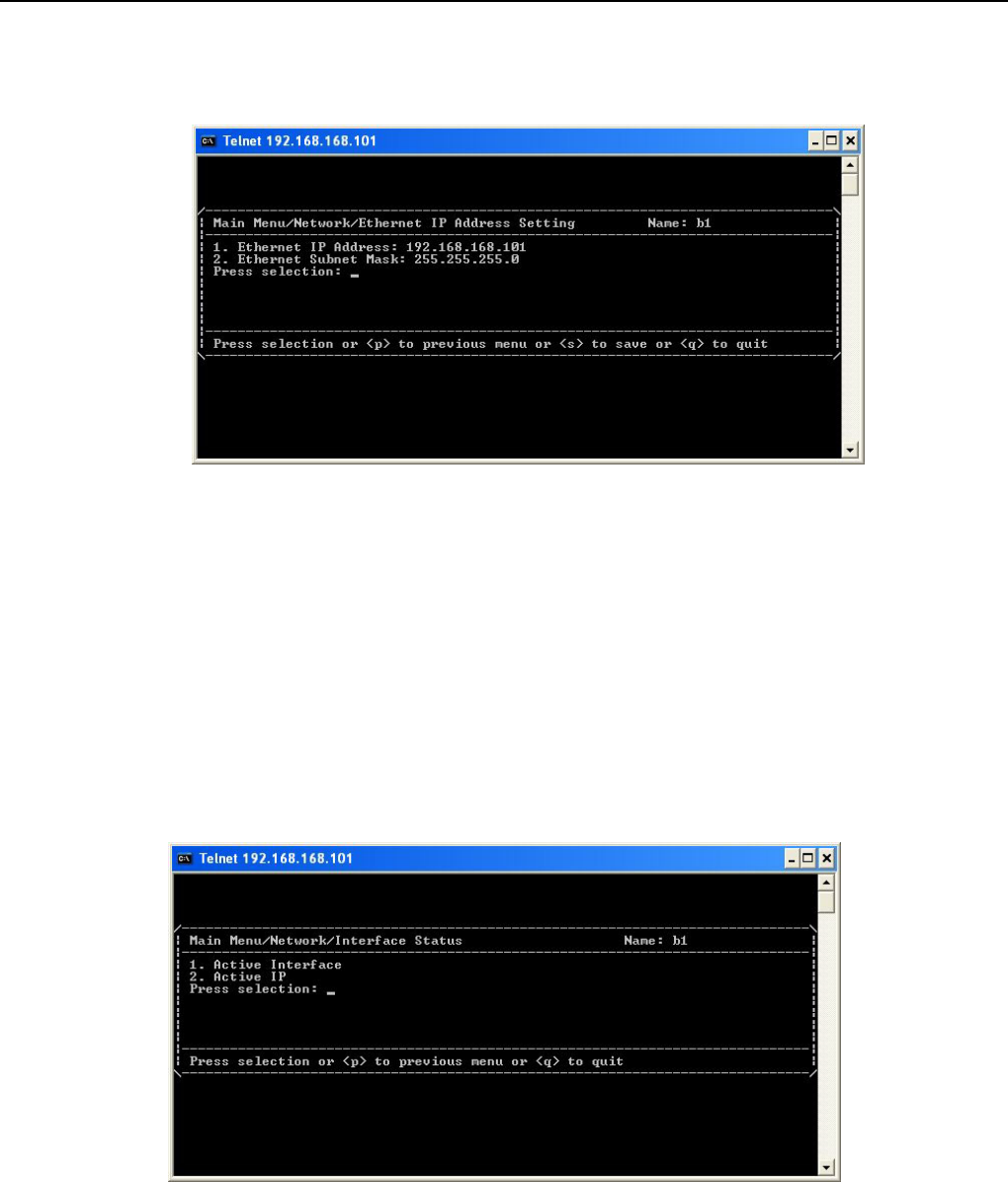

Figure 8-7 Ethernet IP Address Setting
In this subpage, you could configure IP address and subnet mask of ETH port.
Ethernet IP Address: IP address of ETH LAN(please refer to section 4.1.1) port.
Ethernet Subnet Mask: Subnet mask of ETH LAN port.
9 This item allows you to access and manage the system via Ethernet after correctly setting.
8.1.6 Interface Status
Figure 8-8 Interface Status
This subpage will display the current interfaces condition.
Active Interface: This item shows interface status. You could immediately “Down” the PPP connection
already in place, including the “Up” and PPP link which has been “Down”. You could select one interface and
activate or deactivate the interface by choosing “Up” or “Down”.
