8.1.4 Link Serial Interface

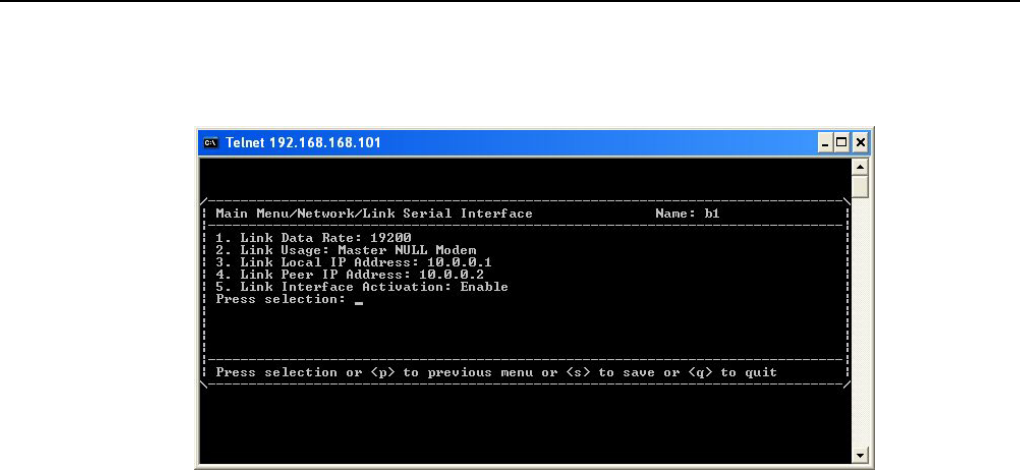

Figure 8-6 Link Serial Interface
In this subpage, you could configure information of Link interface.
Link Data Rate: Data rate of Link setting. There are 2 optional speeds: 9600, 19200. Default value is 19200.
9 We recommend that you should set the value to 19200.
Link Usage: There are 2 optional usages: Master Null Modem, Slave Null Modem.
When Link port establishes RF connection with other equipments, you should choose value “Master Null
Modem” in one end of the connection and “Slave Null Modem” in the other end. The Link IP of equipment
which chooses to be “Slave Null Modem” is assigned by the Master equipment. Therefore, you don’t have to
setup Link IP of slave modem.
Link Local IP Address: IP address of Link port in local equipment.
Link Peer IP Address: IP address of Link port in remote equipment when RF connection is established.
Link Interface Activation: Enable or disable of Link port. When you have to establish RF connection via Link
port, you should set the value to “Enable”.
