7
English
AUDIO
DVD
IN
RIGHT LEFT
A
B
DVD
IN
DVD
R
L
MONITOR
OUT
TV SOUND
IN
AUDIO
RIGHT LEFT
A
B
R
L
OUT
(REC)
VCR
IN
(PLAY)
OUT
(REC)
VCR
IN
(PLAY)
R
L
R
L
A B DC
TV
VCR

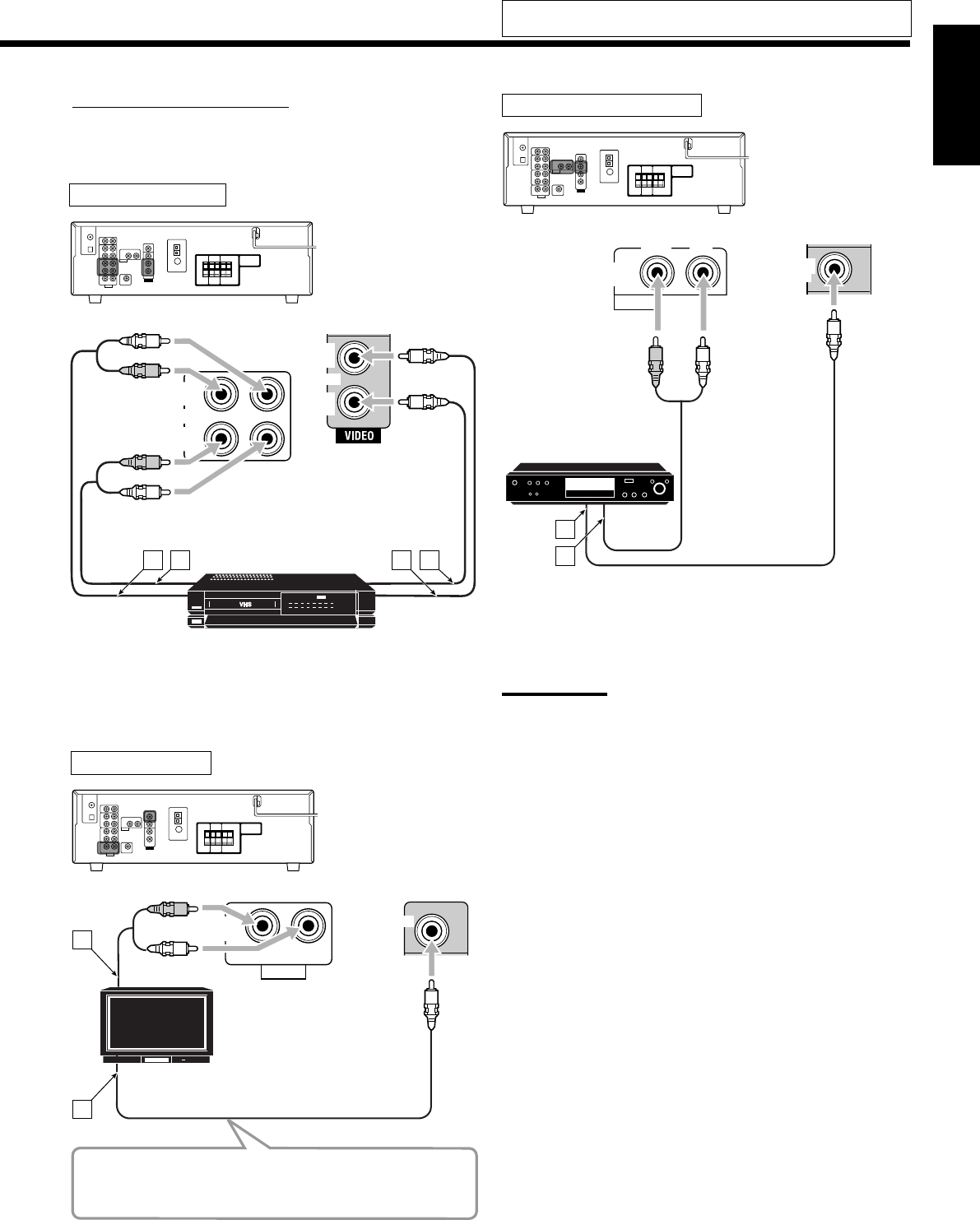

Video component connections
Use the cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, the red plug to the
audio right jack, and the yellow plug to the video jack.
VCR
Å To audio input
ı To audio output
Ç To composite video input
Î To composite video output
TV
Connect the TV to appropriate MONITOR OUT jacks to view
the playback picture from any other connected video
components.
DVD player
Å To composite video output
ı To left/right front channel audio output (or to audio-mixed
output if necessary)
Note:
To enjoy Dolby Digital and DTS multi-channel software (including Dual
Mono software), connect the DVD player through the digital input/
output terminals.
DVD player
Å To audio output
ı To composite video input
Do not connect the AC power cord until all other connections
have been made.
