22 EN
VIDEO PLAYBACK
(cont.)

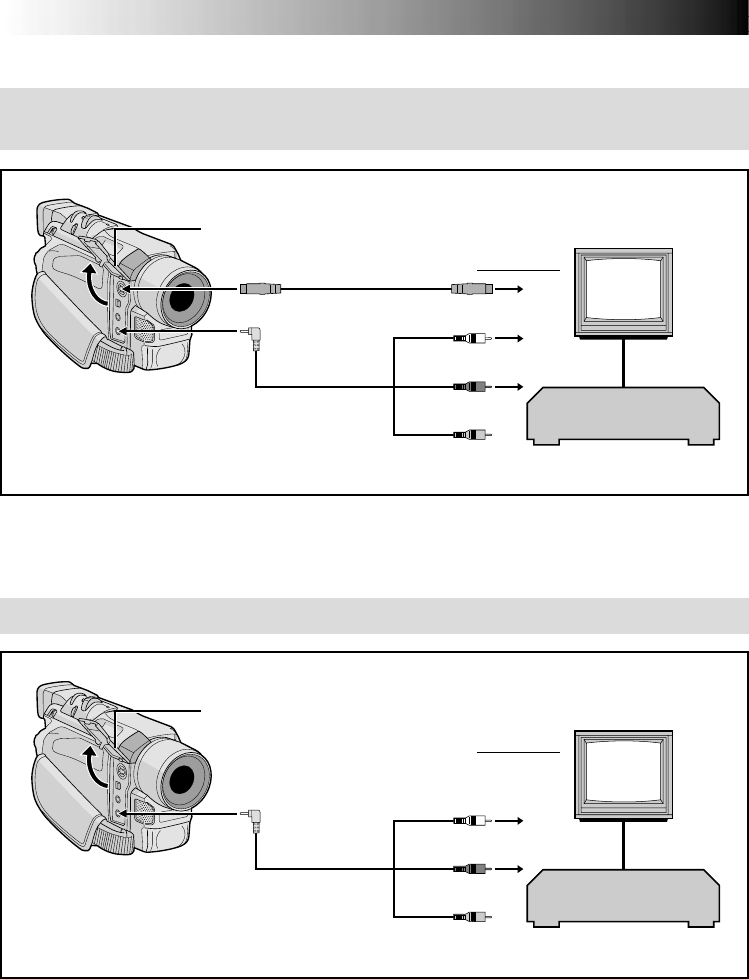

Connections
To AV
To S-VIDEO
Red to
AUDIO R IN**
White to
AUDIO L IN**
Yellow:
Not connected
To TV or VCR
S-Video cable
(optional)
TV
VCR
* When connecting the cables, open this cover.
** The Audio cable is not required for watching still images only.
Connector cover*
A.Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input
connectors
B. Connection to a TV or VCR equipped only with A/V input connectors
* When connecting the cables, open this cover.
** The Audio cable is not required for watching still images only.
To S-VIDEO IN
Audio/Video cable
[mini-plug to RCA
plug] (provided)
To AV
Red to
AUDIO R IN**
White to
AUDIO L IN**
Yellow to
VIDEO IN
To TV or VCR
TV
VCR
Connector cover*
Audio/Video cable
(provided)
