Specification Sheet

1300 S. Wolf Road • Des Plaines, IL 60018 • Phone [phone] • Fax [phone] • Visit us at www.acuitybrands.com/juno-recessed
Printed in U.S.A. ©2017 Acuity Brands Lighting, Inc. Rev. 03/01/17
1 of 1
Project:
Fixture Type:
Location:
Contact/Phone:

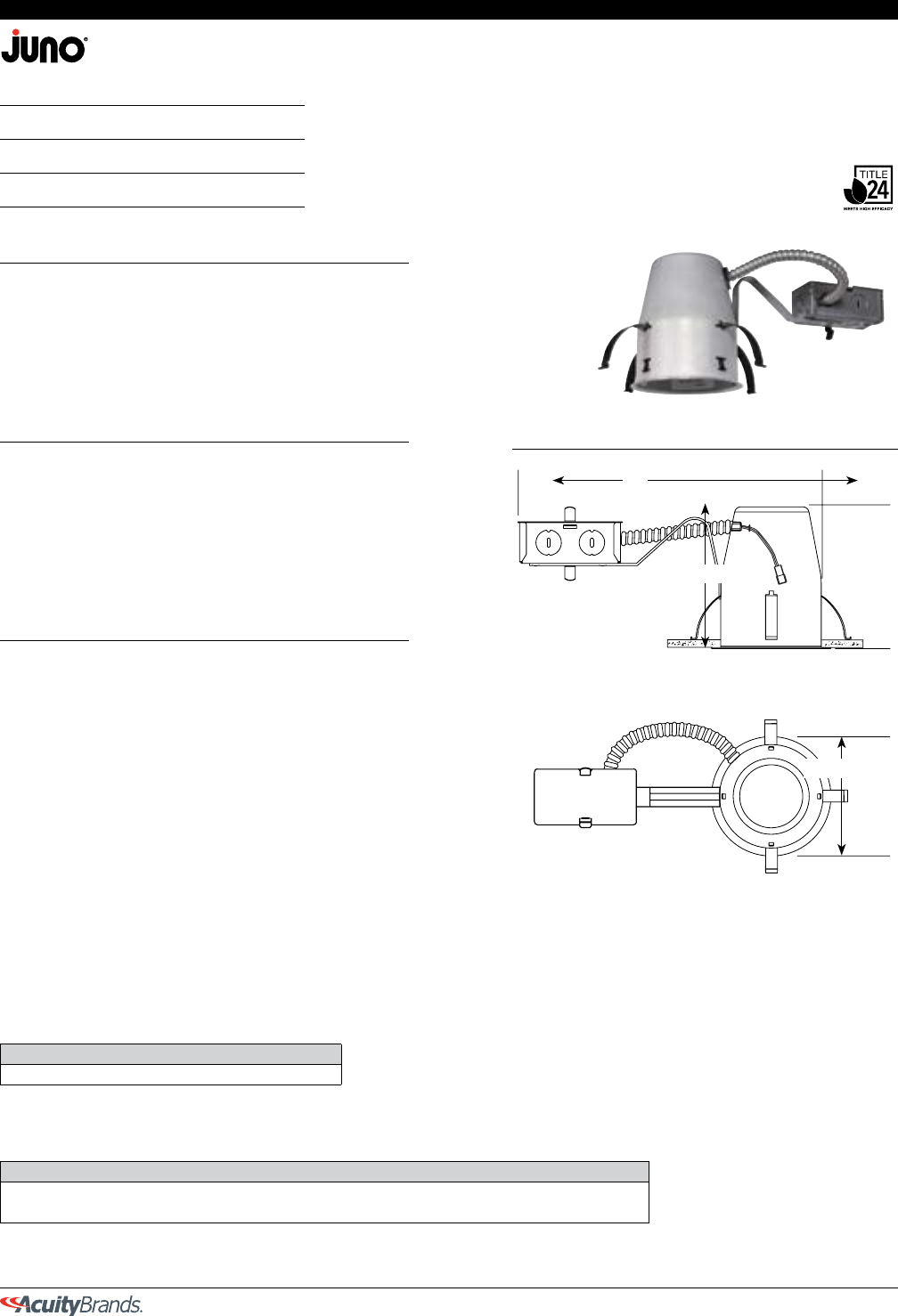

4” IC REMODEL HOUSING
IC1R LEDT24
COMPATIBLE WITH
4RLD SERIES
G1.7.23
PRODUCT DESCRIPTION
IC Air-Loc
®
Remodel Housing for use with Juno retrofit LED
trim modules • Energy efficient, sealed housing • IC Remodel
Housing for remodel application where back side of ceiling is not
accessible • Installs through an opening in the ceiling from below
• Secured in place by factory installed remodel springs • Can be
completely covered with insulation • Fully sealed housing stops
exfiltration of air, reducing heating and air cooling costs without
the use of additional gaskets.
PRODUCT SPECIFICATIONS
Electrical Connections Features non-screw base 120V plug-in
connector • Compatible with Juno retrofit LED trim modules
Labels U.L. listed for U.S. and Canada for through-branch
wiring and damp locations.• Meets high efficacy requirements of
California T24.
Testing All reports are based on published industry procedures;
field performance may differ from laboratory performance.
Specifications subject to change without notice.
INSTALLATION
Junction Box Pre-wired junction box provided with removable
access plate, (5) ½” knockouts and (4) Non-metallic sheathed
cable connectors and ground wire • U.L. listed/CSA certified
for through-branch wiring, maximum 4 No. 12 AWG 90˚ C
branch circuit conductors (2 in, 2 out) • Knockouts equipped
with pryout slots.
Housing IC aluminum housing sealed for Air-Loc Compliance
• Remodel springs accommodate up to a 5/8” ceiling thickness.
DIMENSIONS
4 3/8” CEILING CUTOUT
5 1/2"
4 11/16"
12"
PRODUCT CODES
Catalog Number Input Voltage
IC1R LEDT24
4” Remodel IC Housing, 4” Quick Connect Housing 120V
Housing and trim can be ordered together or separate, but will always ship separately.
COMPATIBLE LED MODULES
Catalog Number
4RLD G2 06LM 27K 90CRI 120 FRPC WWH
4” Juno Basics Retrofit Downlight, Generation 2, 600 Nominal Lumens, 2700K, 90+ CRI, 120V, Forward/Reverse Phase Cut, White with White Trim Ring
4RLD G2 06LM 30K 90CRI 120 FRPC WWH
4” Juno Basics Retrofit Downlight, Generation 2, 600 Nominal Lumens, 3000K, 90+ CRI, 120V, Forward/Reverse Phase Cut, White with White Trim Ring
Housing and trim can be ordered together or separate, but will always ship separately.
