Page 2-14 Hardware Features
System Tray Indicators
System tray indicators specify applications that are running on your
computer. The Allegro CE system tray indicators are located in the
bottom right corner system tray.
These system tray indicators are active while the Allegro is running
specific tasks. These indicators provide you with the following
information:

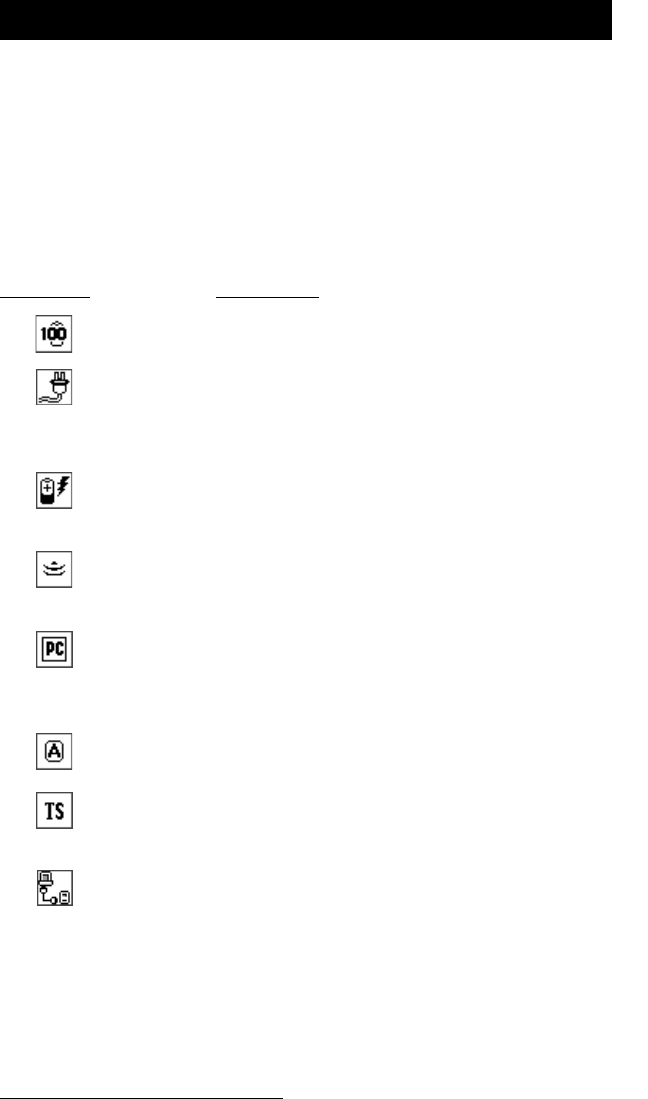

System Tray Indicator
Indicators Description
Remaining Battery Charge Status: shows the
percent of charge remaining in the batteries
External Power Input: indicates that you are
connected to an external power source and
not drawing power from the internal
batteries
Charging Indicator: appears in the system
tray while the rechargeable batteries are
being charged up
Data Storage Activity: appears when data
are being read from or written to the solid
state disk
PC Card Activity: indicates that the
application program is accessing the PC
card (do not remove the card when this icon
is on)
Caps Lock On: appears when the all capital
letters option is activated
Touchscreen Disable: appears when the
touchscreen is disabled for cleaning
purposes, or for use in heavy rain storms.
PC Connection: appears when there is an
active connection between the Allegro and
the desktop PC.
