Windows CE Page 4-53

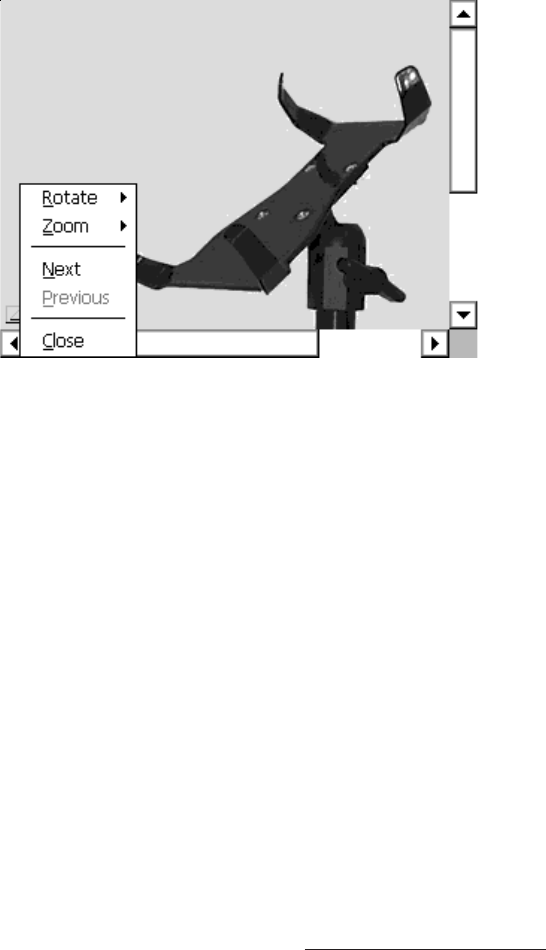

The image shown below is larger than the Allegro’s screen. The

arrows on the right side of the image allow you to move it up or

down. The arrows on the bottom of the image allow you to move it left

or right. These arrows give you access to sections of the image that

you cannot see on the Allegro’s screen when you open the image.

Once the image is open, there is a small box with an arrow pointing

up in the bottom left hand corner of the image. Tapping on the arrow

accesses a pop-up window with the following options:

Rotate

Zoom

Next

Previous

Close

Rotate

Tapping on Rotate opens a pop-up window with the following

options for rotation the image:

L90

o

R90

o

180

o

Flip horizontal

Flip vertical
