User manual

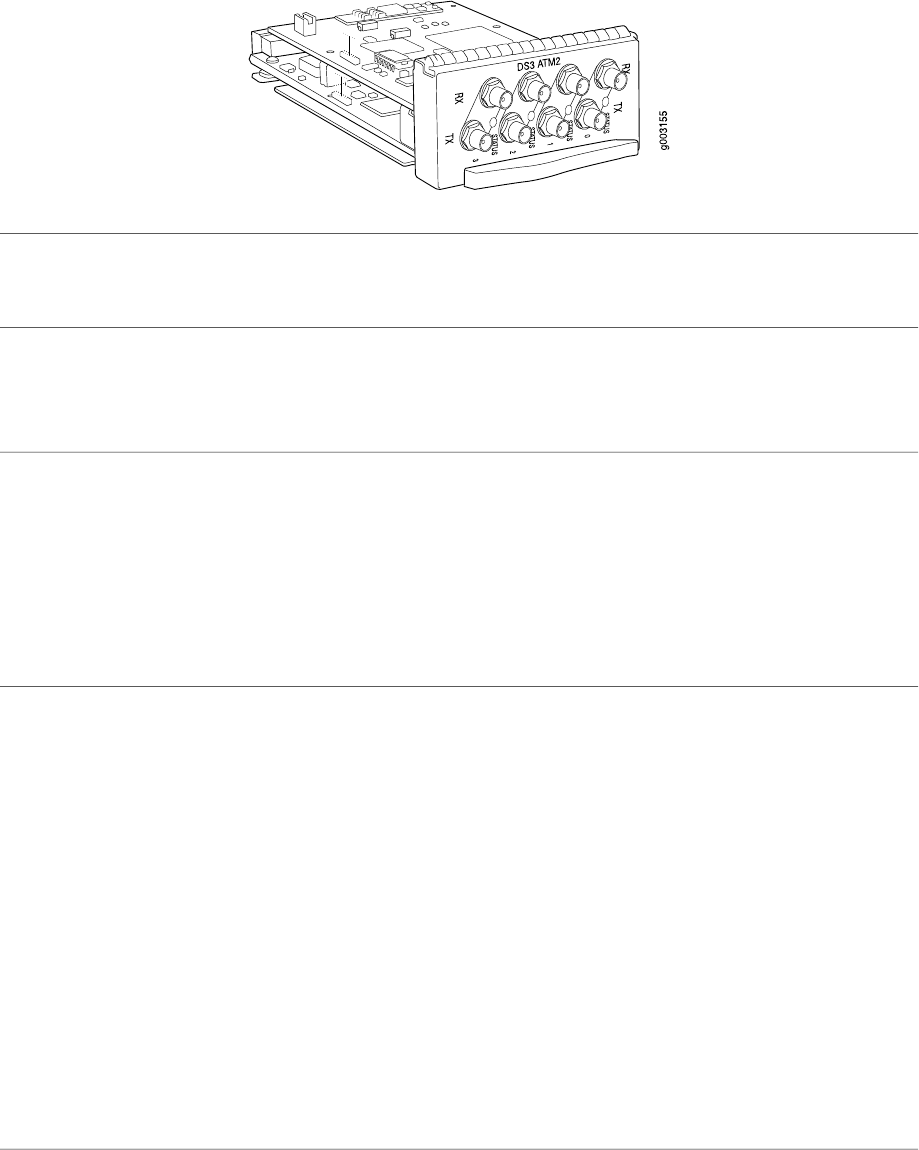

ATM2 DS3 IQ PIC
■
JUNOS 6.1 and laterSoftware release
■
Four DS3 ports
■
Power requirement: 0.41 A @ 48 V (20.0 W)
■
Intelligent queuing (IQ) PICs support fine-grained queuing per logical interface.
■
ATM standards compliant
Description
■
16-MB SDRAM memory for ATM segmentation and reassembly (SAR)
■
ATM switch ID
■
Configurable framing options:
■
C-bit with ATM direct mapping
■
C-bit with Physical Layer Convergence Protocol (PLCP) framing (default)
■
M23 ATM direct mapping
■
M23 with PLCP framing
■
Internal and loop timing
Hardware features
■
Per-virtual circuit (VC) and per-virtual path (VP) traffic shaping
■
Unspecified bit rate (UBR) traffic shaping
■
Fine-grained variable bit rate (VBR) traffic shaping
■
Circuit cross-connect (CCC)
■
ATM Inverse Address Resolution Protocol (ARP), which enables routers to automatically
learn the IP address of the router on the far end of an ATM permanent virtual circuit
(PVC)
■
Simple Network Management Protocol (SNMP):
■
Management Information Base (MIB) 2 (RFC 1213)
■
ATM MIB (RFC 1695)
■
SONET MIB
■
AAL5 encapsulations:
■
ATM-VC-MUX
■
ATM-NLPID
■
ATM-Cisco-LLPID
■
ATM-SNAP
■
ATM-CCC-VC-MUX
Software features
