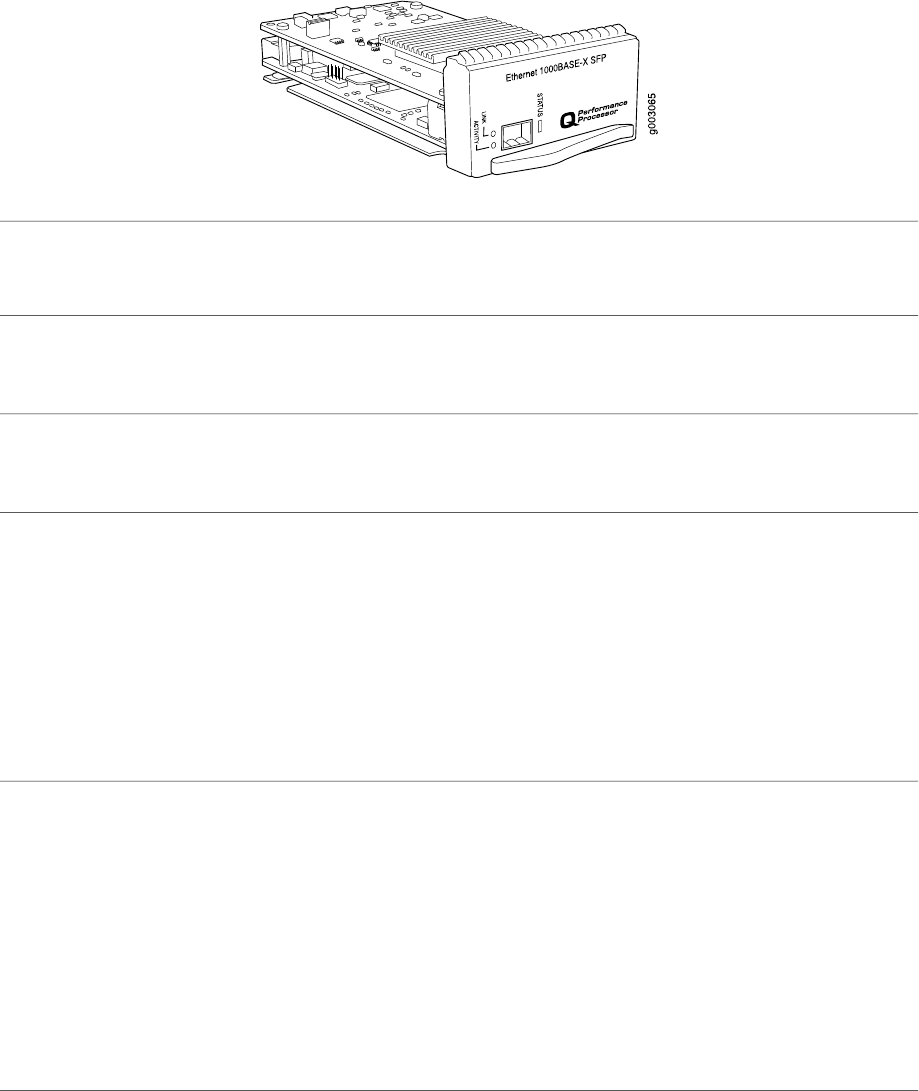

Gigabit Ethernet IQ PIC with SFP
■
JUNOS 6.1 and laterSoftware release
■
One Gigabit Ethernet port
■
Power requirement: 0.46 A @ 48 V (22 W)
■
Intelligent queuing (IQ) PICs support fine-grained queuing per-logical interface.
Description
■
High-performance throughput at speeds up to 1 Gbps
■
Full-duplex mode
■
Large MTUs of up to 9192 bytes
Hardware features
■
Optical diagnostics and related alarms (JUNOS Release 8.2 and later)
■
Quality of service (QoS) per channel: Weighted round-robin (WRR), Random early drop
(RED), Weighted random early drop (WRED)
■
Virtual Router Redundancy Protocol (VRRP) support
■
802.1Q Virtual LANs
■
VLAN stacking and rewriting
■
MAC policing, accounting, and filters
■
Flexible Ethernet encapsulation
■
JUNOS Release 7.0 or later is required to configure graceful Routing Engine switchover
(GRES).
Software features
■
The Gigabit Ethernet IQ PICs use small form factor-pluggables (SFPs) that allow different
interfaces to be used on the PIC. For information about installing and removing SFPs,
see the M10i Internet Router Hardware Guide.
■
SX, LX, and LH SFPs:
■
Duplex LC/PC connector (RX and TX)
■
Optical interface support—See Table 10 on page 50
■
1000Base-T SFPs:
■
Connector: Four-pair, Category 5 shielded twisted pair connectivity through an RJ-45
connector
■
Pinout: MDI crossover
■
Length: 328 ft/100 m
Cables and connectors
Gigabit Ethernet IQ PIC with SFP ■ 49
Gigabit Ethernet IQ PIC with SFP
