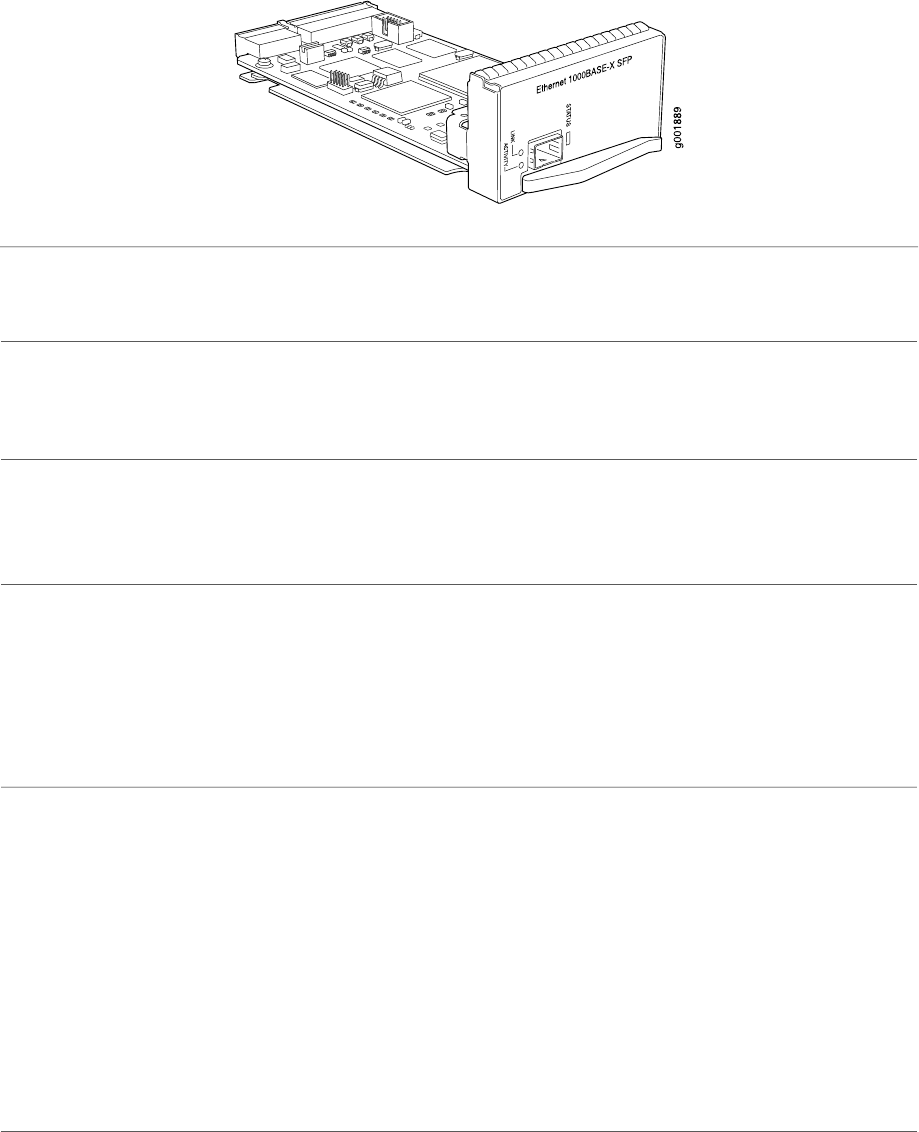

Gigabit Ethernet PIC with SFP
■
JUNOS 6.3 and laterSoftware release
■
One Gigabit Ethernet port
■
Power requirement: 0.15 A @ 48 V (7.3 W)
■
Supports large Ethernet frame sizes for more efficient throughput across the intra-POP
network
Description
■
High-performance throughput on each port at speeds up to 1 Gbps
■
Autonegotiation between Gigabit Ethernet circuit partners
■
Full-duplex mode
■
Maximum transmission units (MTUs) of up to 9192 bytes
Hardware features
■
Virtual Router Redundancy Protocol (VRRP) support
■
802.1q virtual LANs (VLANs) support
■
960 destination MAC filters per port
■
Flexible Ethernet encapsulation
■
Multiple tag protocol identifiers (TPID) support
■
Source MAC learning
■
MAC accounting and policing—Dynamic local address learning of source MAC addresses
Software features
■
You can install any transceiver supported by the PIC. For information about installing
and removing transceivers, see the PIC and Transceiver Installation Instructions.
■
Fiber-optic SFP transceivers:
■
Duplex LC/PC connector (Rx and Tx)
■
Optical interface support—See Table 9 on page 48
■
1000Base-T SFP transceivers:
■
Connector: Four-pair, Category 5 shielded twisted-pair connectivity through an RJ-45
connector
■
Pinout: MDI crossover
■
Length: 328 ft/100 m
NOTE: Do not install Gigabit Ethernet SFPs in the SONET/SDH port. The port will not recognize
the SFP.
Cables and connectors
