User manual

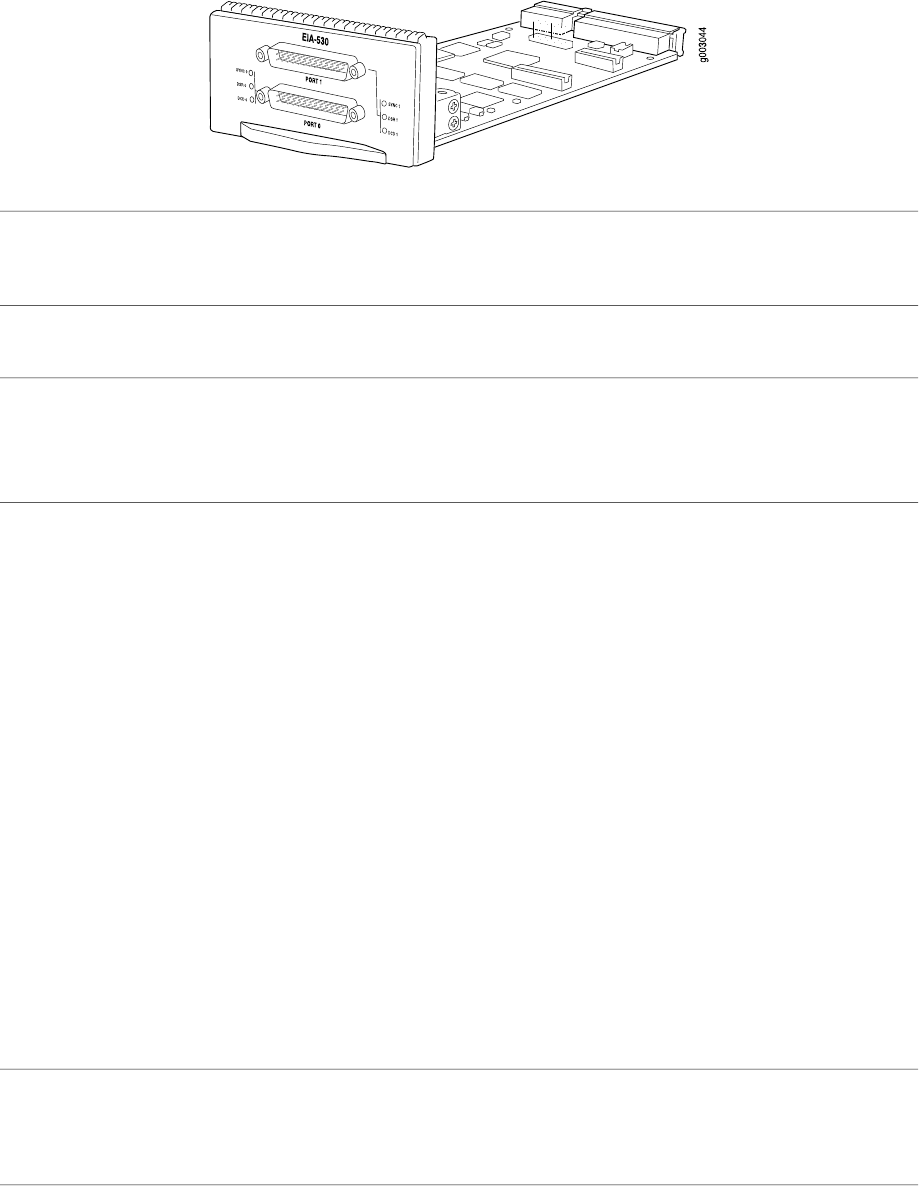

EIA-530 PIC
■
JUNOS 6.1 and laterSoftware release
■
Two EIA-530, X.21 or V.35 serial ports
■
Power requirement: 0.07 A @ 48 V (3.4 W)
Description
■
Configured as data terminal equipment (DTE) ports
■
Resynchronization signal
■
Receives clock rates up to 16 Mbps
■
Local, data communications equipment (DCE) local, and DTE remote loopbacks
Hardware features
■
Supports four queues per port
■
Random early detection (RED)
■
Transmitter Signal Element Timing is looped from the timing received on the Transmitted
Signal Element DCE. EIA-530 ports support the ability to invert the Transmit Data Element.
The EIA-530 ports support the following rates:
■
2.048 Mbps
■
2.341 Mbps
■
2.731 Mbps
■
3.277 Mbps
■
4.09 Mbps
■
5.461 Mbps
■
8.192 Mbps
■
16.384 Mbps
■
V.35 ports support up to 2.048 Mbps
■
X.21 ports support up to 10 Mbps
■
Encapsulations:
■
High-Level Data Link Control (HDLC)
■
Frame Relay
■
Circuit cross-connect (CCC)
■
Translational cross-connect (TCC)
■
Point-to-Point Protocol (PPP)
Software features
■
Two DB-25 male connectors (one per port, included with PIC)
■
V.35 requires an EIA-530 to V.35 cable and connects to a V.35 DTE 34-pin Winchester
type male cable (one per port)
■
X.21 requires an EIA-530 to X.21 cable and connects to a X.21 DTE DB-15 male cable
Cables and connectors
