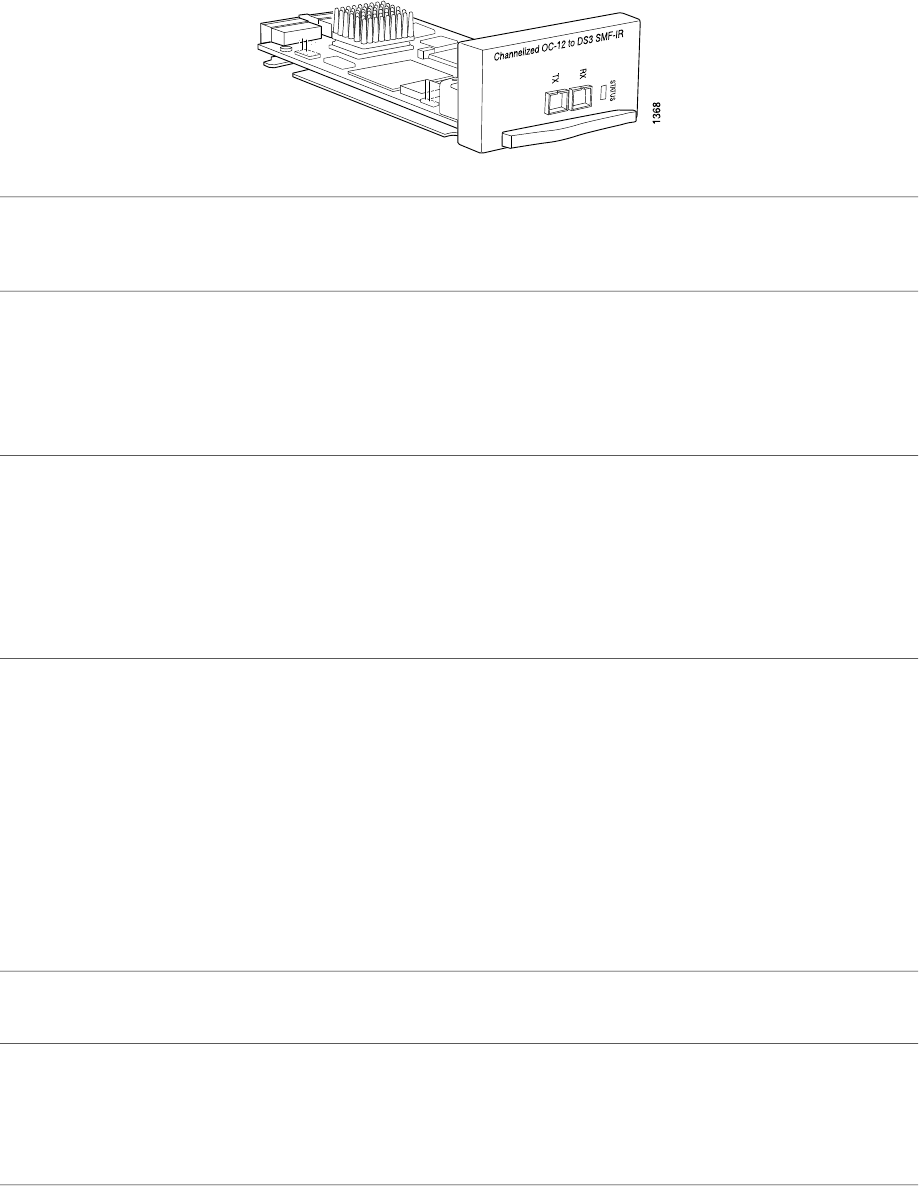

Channelized OC12 PIC
■
JUNOS 6.1 and laterSoftware release
■
One OC12 port
■
Power requirement: 0.23 A @ 48 V (10.8 W)
■
12 DS3 channels
■
Supports IP version 4 (IPv4) unicast and multicast as well as MPLS, Intermediate
System-to-Intermediate System (IS-IS), Open Shortest Path First (OSPF), and Border
Gateway Protocol (BGP)
Description
■
ASIC-based, high-performance throughput on all ports
■
Integrated DSU functionality with subrate and scrambling support for each DS3 channel
■
Class-of-service support for each DS3 channel
■
Dual-router SONET automatic protection switching (APS)
■
Rate policing on input for each DS3 channel
■
Rate shaping output for each DS3 channel
■
Packet buffering, Layer 2 parsing
Hardware features
■
M13/C-bit parity encoding
■
Full instrumentation per DS3 channel
■
DS3 diagnostics and loopback control
■
DS3 alarm and event counting and detection
■
DS3 Far-end Alarm and Control (FEAC) channel support
■
Encapsulations:
■
High-Level Data Link Control (HDLC)
■
Frame Relay
■
Circuit cross-connect (CCC)
■
Translational cross-connect (TCC)
■
Point-to-Point Protocol (PPP)
Software features
■
Duplex SC/PC connector (RX and TX)
■
Optical interface support—See Table 5 on page 23
Cables and connectors
One tricolor per port:
■
Off—Not enabled
■
Green—Online with no alarms or failures
■
Amber—Online with alarms for remote failures
■
Red—Active with a local alarm; router has detected a failure
LEDs
