User manual

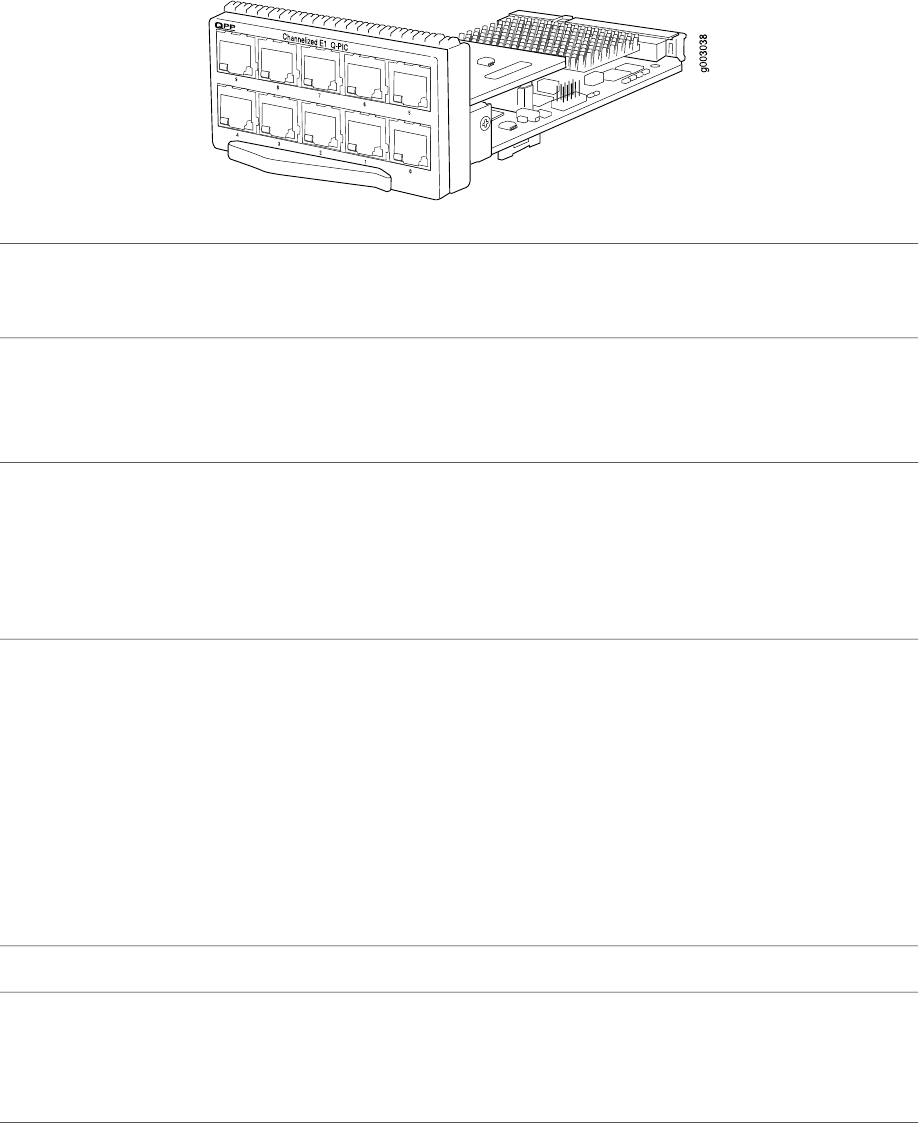

Channelized E1 IQ PIC
■
JUNOS 6.1 and laterSoftware release
■
Ten E1 ports
■
Power requirement: 0.15 A @ 48 V (7.2 W)
■
Intelligent queuing (IQ) PICs support fine-grained queuing per logical interface.
■
Channelization: E1, DS0
Description
■
Data service unit (DSU) functionality
■
Ports configurable as clear channel E1 interfaces with 2.048-Mbps connectivity
■
Supports unframed E1 G.703 and G.704 framing modes
■
Supports HDB3 line coding
■
CRC4 configurable
■
Local and remote loopback testing
Hardware features
■
Quality of service (QoS) per channel: weighted round-robin (WRR), random early detection
(RED), weighted random early detection (WRED)
■
Simple Network Management Protocol (SNMP): E1 MIB, DS0 MIB
■
Dynamic, arbitrary channel configuration
■
Full bit error rate test (BERT)
■
Encapsulations:
■
High-Level Data Link Control (HDLC)
■
Frame Relay
■
Circuit cross-connect (CCC)
■
Translational cross-connect (TCC)
■
Point-to-Point Protocol (PPP)
Software features
■
120-ohm RJ-48CCables and connectors
One bicolor per E1 port:
■
Off—Port not enabled
■
Green—Physical E1 link is up; individual subchannels can be down
■
Red—Physical E1 link is down
LEDs
