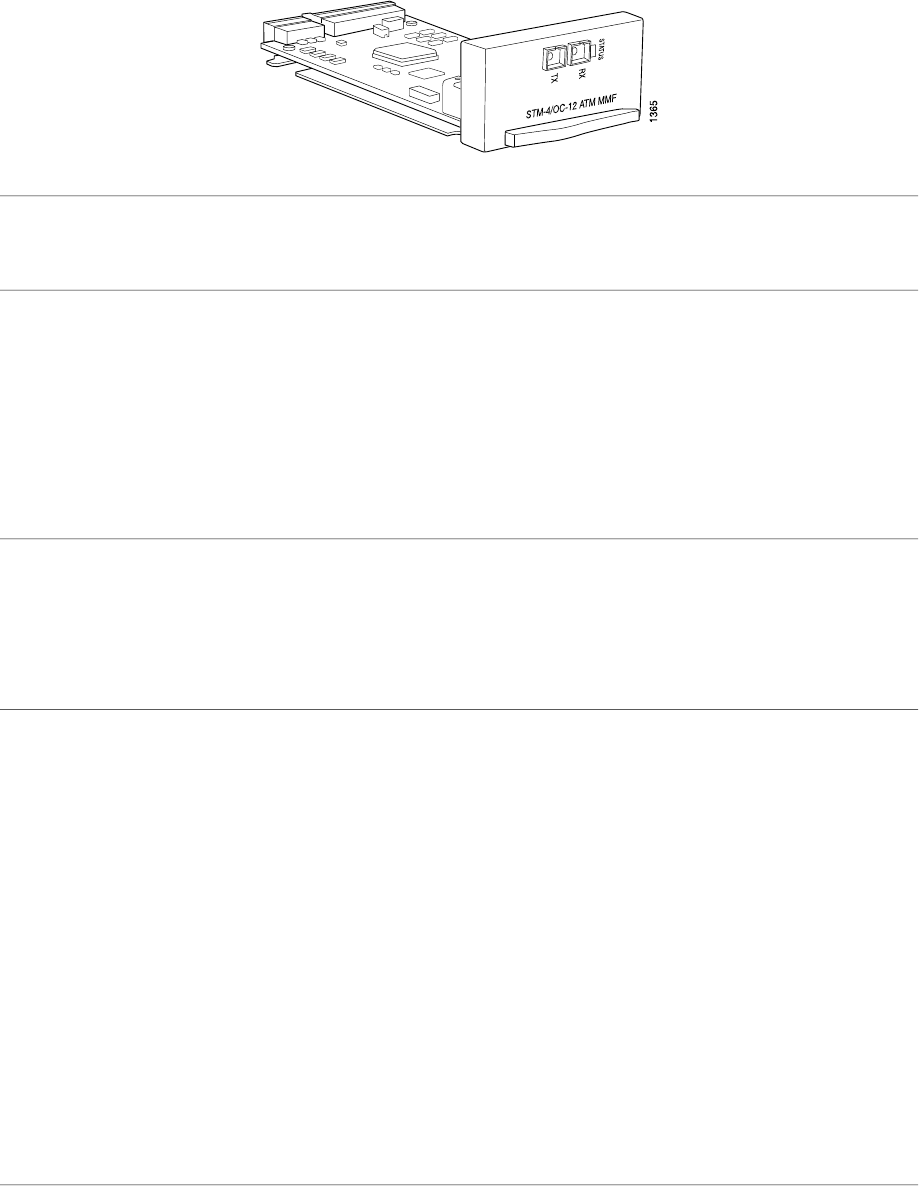

ATM2 OC12/STM4 IQ PIC
■
JUNOS 6.1 and laterSoftware release
■
One OC12 port
■
Power requirement: 0.41 A @ 48 V (20 W)
■
Intelligent queuing (IQ) PICs support fine-grained queuing per logical interface
■
Conforms to ANSI T1.105-1991 and T1E1.2/93-020R1
■
Complies with ATM and SONET/SDH standards
■
Alarm and event counting and detection
■
Compatible with well-known ATM switches
■
ATM switch ID, which displays the switch IP address and local interface name of the
adjacent Fore ATM switches
Description
■
One 3010 SAR for segmentation and reassembly into 53-byte ATM cells
■
High-performance parsing of SONET/SDH frames
■
ASIC-based packet segmentation and reassembly (SAR) management and output port
queuing
■
64 MB SDRAM memory for ATM SAR
■
Packet buffering, Layer 2 parsing
Hardware features
■
Circuit cross-connect for leveraging ATM access networks
■
User-configurable virtual circuit (VC) and virtual path (VP) support
■
Support for idle cell or unassigned cell transmission
■
OAM fault management processes alarm indication signal (AIS), remote defect indication
(RDI), and loop cells
■
Point-to-point and point-to-multipoint mode Layer 2 counters per VC and per VP
■
Local and remote loopback
■
ATM Inverse ARP, which enables routers to automatically learn the IP address of the
router on the far end of an ATM PVC
■
Simple Network Management Protocol (SNMP):
■
Management Information Base (MIB) 2 (RFC 1213)
■
ATM MIB (RFC 1695)
■
SONET MIB
■
Unspecified bit rate (UBR), non-real-time variable bit rate (VBR), and constant bit rate
(CBR) traffic shaping
■
Per-VC or per-VP traffic shaping
■
Support for F4 OAM cells
■
Support for 16-bit VCI range
Software features
