3 Mounting
Permissible
incident flow
velocity

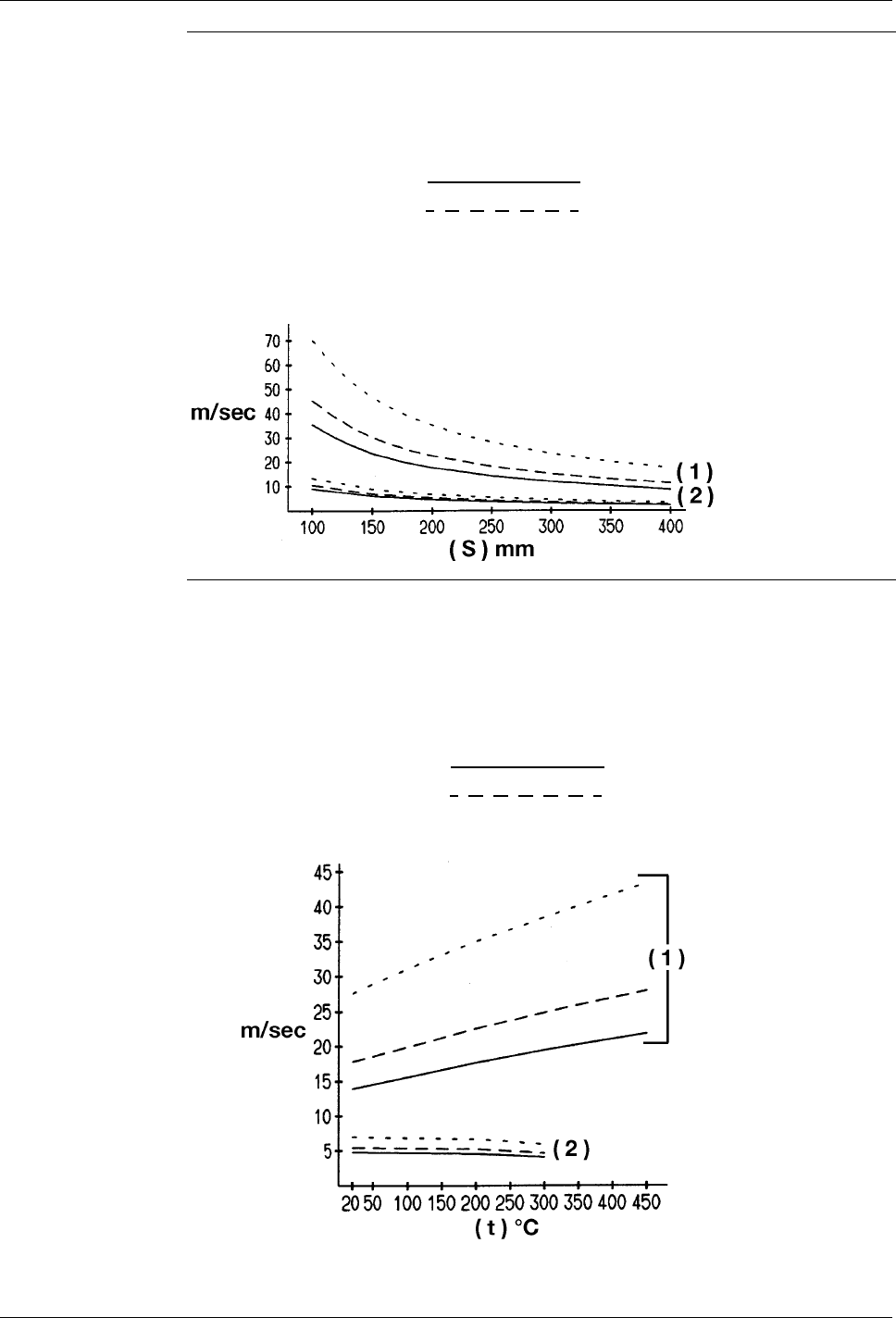

Permissible incident flow velocity (m/sec) at the maximum permissible
pressure loading and different immersion tube lengths “S”.
Permissible incident flow velocity (m/sec) at the maximum permissible
pressure loading and different immersion tube temperatures “t”.
Material: St35.8 I
Temperature: +200°C
Thermal medium:
air ( 1 )
water, oil ( 2 )
Tube diameter D:
08mm
10 mm
. . . . . . . . . . . . . . 15 mm
( 1 ) Air
( 2 ) Water, oil
Material: St35.8 I
Immersion tube length “s”:
200 mm
Thermal medium:
air
water, oil
Tube diameter D:
08mm
10 mm
. . . . . . . . . . . . . . 15 mm
( 1 ) Air
( 2 ) Water, oil
