3 Mounting
3.2 Fixing the panel-mounting thermostat
Operating
position
unrestricted

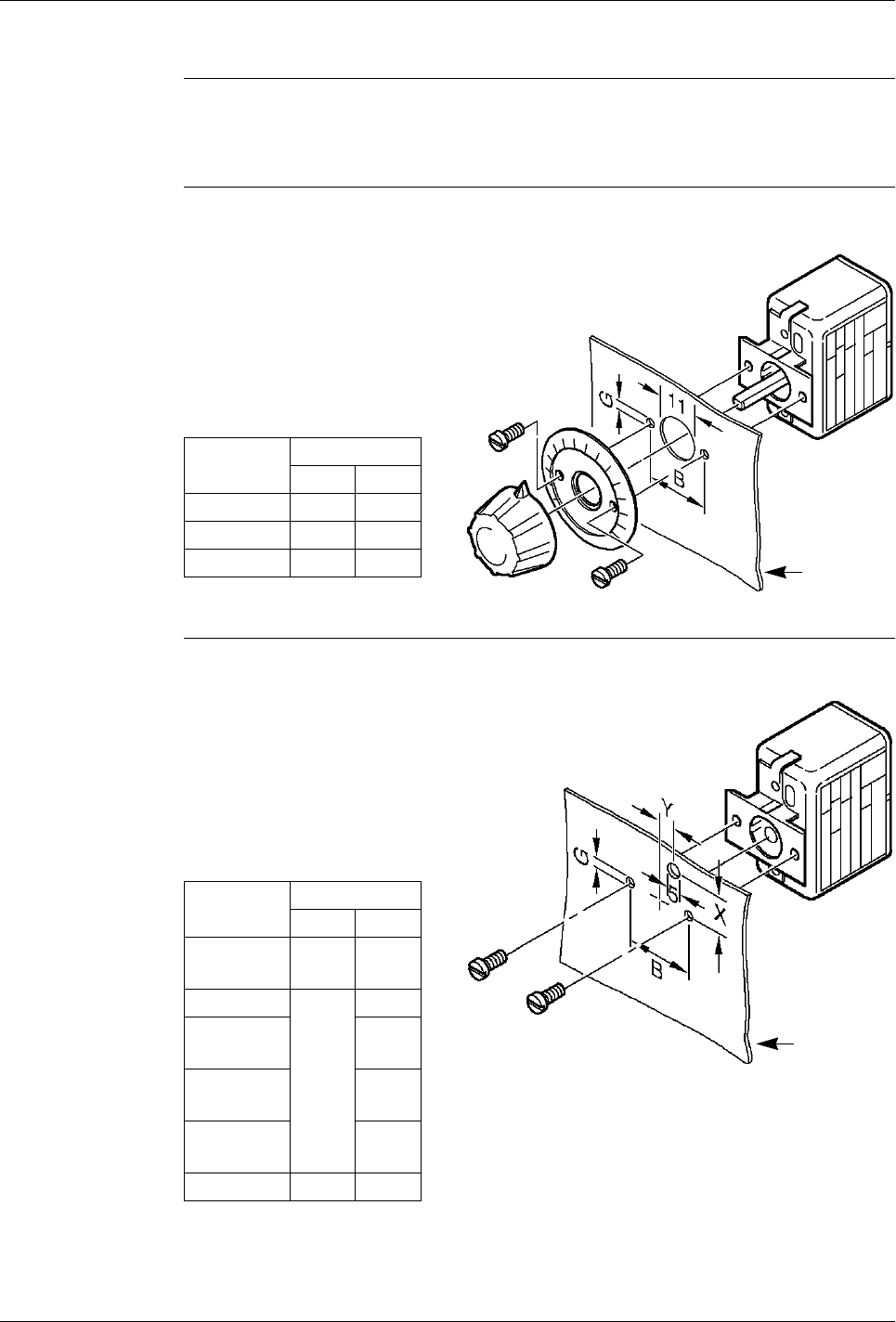

3.2.1 Mounting the switch head
Type EM.-1... by two M3 screws
(M4 with extra code 704)
on chassis:
(1) Screw
(2) Panel
Type EM.-2... ,
-3... , -4... , -5... ,
-20, -30, -40 or
-50
by two M3 screws
(M4 with extra code 704)
on chassis:
(1) Screw
(2) Panel
Dimensions B and G, see above
Extra
code
Dim. (mm)
GB
Series 3.5 22
704 4.5 28
705 3.5 33
( 1 )
( 1 )
( 2 )
Type Dim. (mm)
XY
EM-2, -3,
-20, -30
- - - -
EM-4, -5,
15
6
EM-40,
-50
11
EMF-44,
-54
11
EMF-444,
-544
19
EMF-5444 27
( 1 )
( 1 )
( 2 )
