Order
code ( 4 ) Capillary type (FL)
a
a
For the description and particularities refer to data sheet 608730.
00 Without (with rigid connection)
02 FL 02 Cu capillary with Cu textile braiding, approx. Ø 2.5 mm (up to AB limit value +300°C)
11 FL 11 Cu capillary with PE jacketing, approx. Ø 3.5 mm (up to AB limit value +120°C)
17 FL 17 Stainless steel capillary, approx. Ø 1.5 mm
21 FL 21 Cu capillary, approx. Ø 1.0 mm (up to AB limit value +300°C)
( 5 ) Capillary
b
b
Screw-in spigot as per DIN 3852, form A.
0 Without (with rigid connection)
1000 1000 mm
2000 2000 mm
3000 3000 mm
4000 4000 mm
5000 5000 mm
. . . . Special length (specifications in plain text: 1000 mm steps, maximum length 6000 mm), further lengths on
request

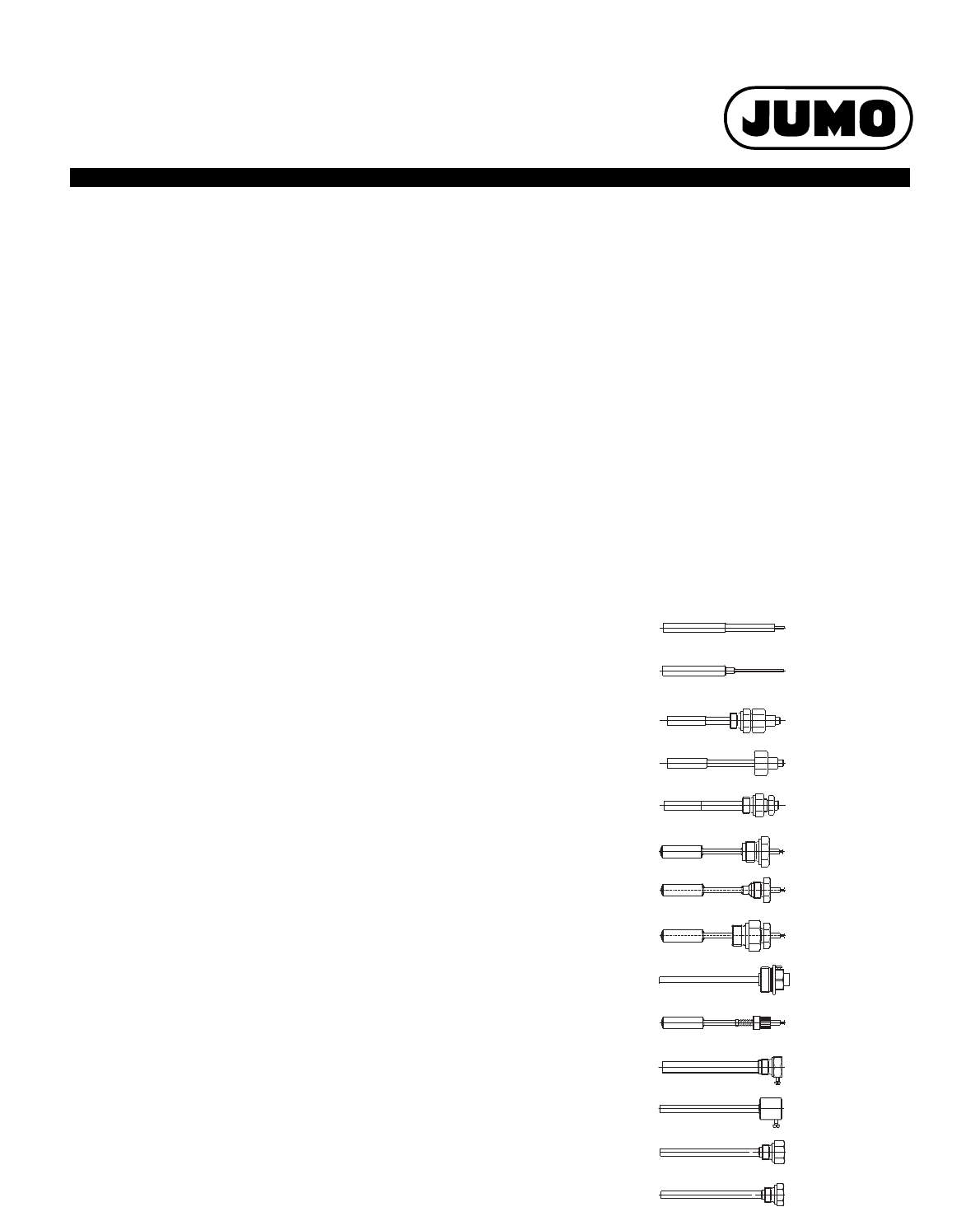

( 6 ) Process connection (PA)
a
750 TF 01 Temperature probe with stepped support tube
752 TF 11 Temperature probe without support tube
843 TA 02 Immersion tube with union nut and loose screw-connection
b
161 TA 03 Immersion tube with loose screw-connection
847 TA 06 Immersion tube with displaceable clamping screw-connection
on support tube
b
311 TA 20 Immersion tube with loose screw-connection and connection
collar
b
872 TA 21 Immersion tube with loose screw-connection and sealing cone
(only G 3/8 possible)
873 TA 22 Immersion tube with loose pressure screw, sealing cone and
loose screw-connection
b
874 TA 24 immersion tube with screw fitting, O ring seal and clamping
screw
a b
401 TA 23 Immersion tube with pressure screw and contact pressure
spring
(only M 10x1 possible)
913 SH 07 Screw-in sheath, multi-part, with clamping piece and locking
screw (suitable for TF 01 and TF 11)
820 SH 09 Weld-in sheath, multi-part, with clamping piece and locking
screw
b
(not for FL 21 - welding collar with steel 1.4515)
876 SH 10 Screw-in sheath, multi-part
b
(suitable for TA 21)
871 SH 11 Screw-in sheath, multi-part
b
(suitable for TA 23)
