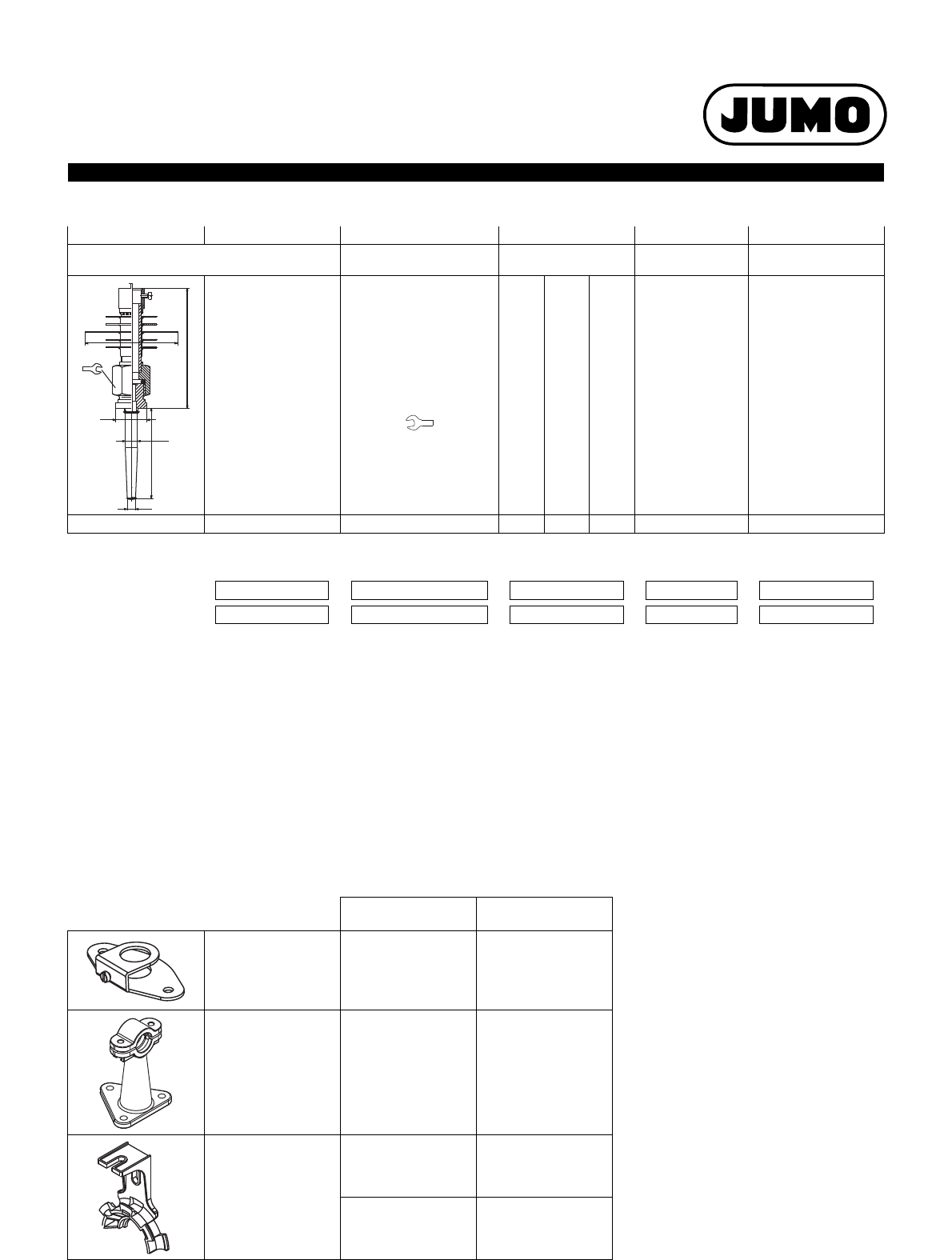

Sheaths
Order code:1 2 345
Process connection Thread G Material
Immersion tube
length "S" in mm
Immersion tube Ø
in mm
Welding sleeve for
union nut (52)
with intermediate
piece, conical
"46“
(EZS)
without thread
32
St (Steel)
CrNi (stainless steel)
100
120
150
200
300
400
Specifications
in plain text
Immersion tube coni-
cal from 12 to 8 mm
(Internal Ø 6.5)
Order code: 606710-46 01 20 . . . 8
1 2 345
Order code: 606710-. . - . . - . . - . . . - . .
Order example: 606710- -
Optional accessories
Abbreviation for
process connections
Part No.
Sheet steel flange 72 60/60677200
Wall support 73 60/60171300
Holder
78
60/00558731
3 pieces
79
60/00558730
6 pieces
S
Ø
12
Ø
90
Ø
~115
Ø30
