8 Configuration level
2013-04-01
86
8 Configuration level

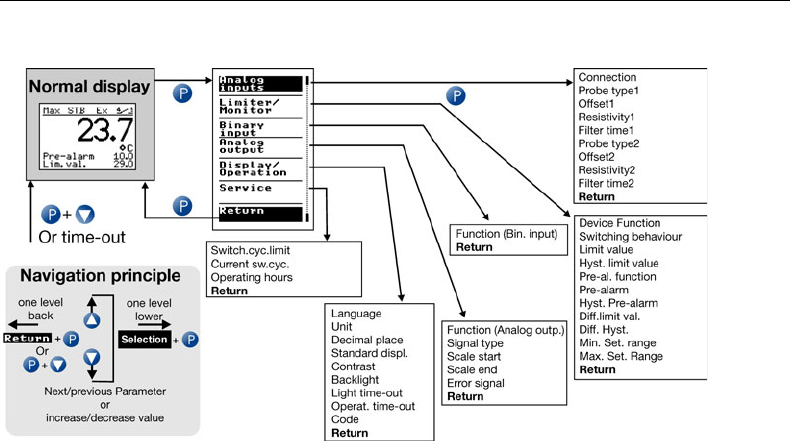

8.1 Navigation principle
All the parameters are freely accessible ex works, but they can be locked via the setup program.
v Chapter 10.3 "Forgotten the code?"
Parameters of the configuration level which are not required are automatically hidden depending on the setting.
