7 ATEX
75
2013-04-01

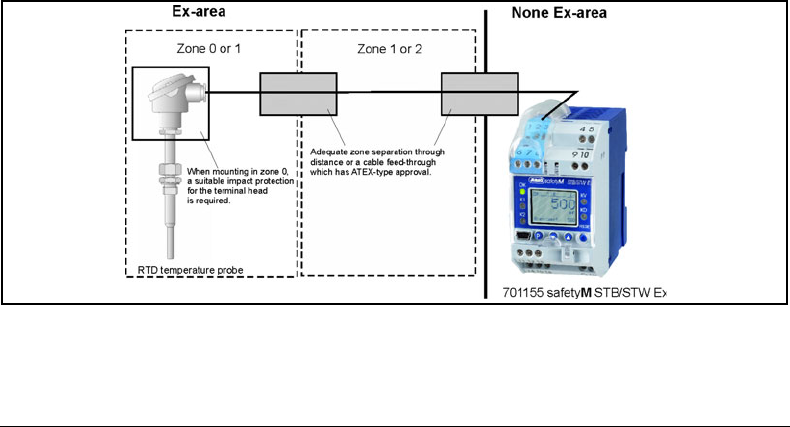

7.4.2 Probe arrangement in the Ex-area
The JUMO safetyM STB/STW Ex has the following maximum output data at the intrinsically safe inputs:
U
o
= 6.0 V; I
o
= 41.2 mA; P
o
= 61.8 mW; C
o
=36.3μF; L
o
=20mH
Figure 7:
A
The sensor system specified in Chapter 9.13 and Chapter 9.14 does not have zone separation.
v Please also note the information in Chapter 9.12.
The type of zone separation as well as the cable selection must be implemented or selected in such a way that the de-
fined zone classifications and their requirements continue to be in place.
