5 Startup of the device
2013-04-01
28
5.8 Seal device
The device settings must not be changed under operating conditions.
A lead-sealed see-through cover is therefore placed on top to prevent unintentional or
unauthorized adjustment.
Two holes are provided to the left and right of the see-through cover through which wire
can be guided for lead sealing to connect the cover to the case. The wire ends are se-
cured with the seal.

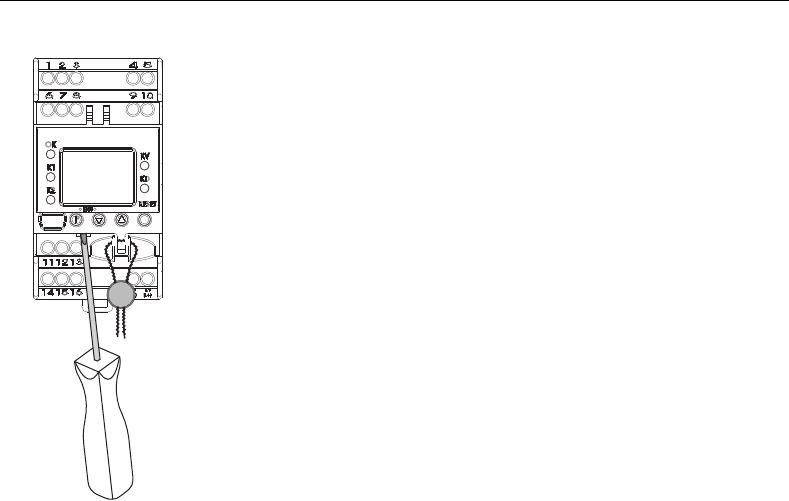

Opening see-through cover for close-density mounting:
A screwdriver can be used to pry open the see-through cover.
