5 Startup of the device
23
2013-04-01
5 Startup of the device
5.1 Display and control elements
h When the voltage supply is set up, a testing routine starts during which all LEDs blink and the backlit display shows white
pixels for 2 s and black pixels for 2 s.
After the testing routine is complete the device shows a main measured value (factory set).
v If an alarm or error message appears, refer to Chapter 11 "Alarm messages".
5.2 Setting the display after device is switched on
v Chapter 8.6.4 "Normal display"

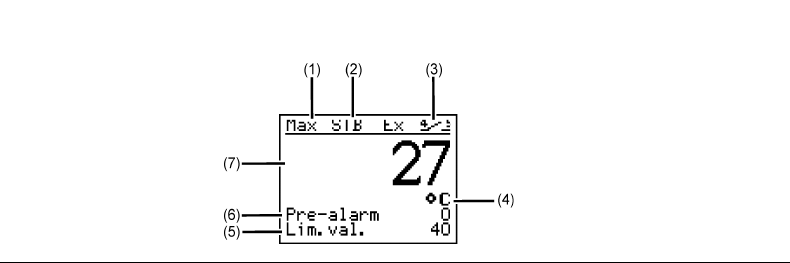

The main measured value appears on the screen in German (this is factory set). The example shows a screen layout in which
the maximum value of a safety temperature limiter of 70 °C with a pre-alarm of 60 °C is monitored.
H
If the main measured value for "Power ON" lies within the hysteresis then the pre-alarm and alarm relay outputs are
set to inactive.
(1) Switching behavior (2) Device function
(3) Binary input
(7) Main measured value
(6) Pre-alarm (4) Temperature unit
(5) Limit value
