4 Electrical connection
17
2013-04-01
4.2 Removing the cover cap
V
The electrical connection and the configuration settings up to the startup must only be carried out by qualified per-
sonnel.
A
The approval according to DIN EN 14597 is only valid when the correct probe with DIN approval is set in the config-
uration level and if the probe is connected.
The limit value to be monitored must lie in the accepted temperature range of the DIN probe!
v Chapter 9.13 "Probes for the operating medium air"
v Chapter 9.15 "Probes for air, water, and oil"
The monitoring function is deactivated while data is transmitted over the setup program.
v Chapter 13 "What to do, if ..."

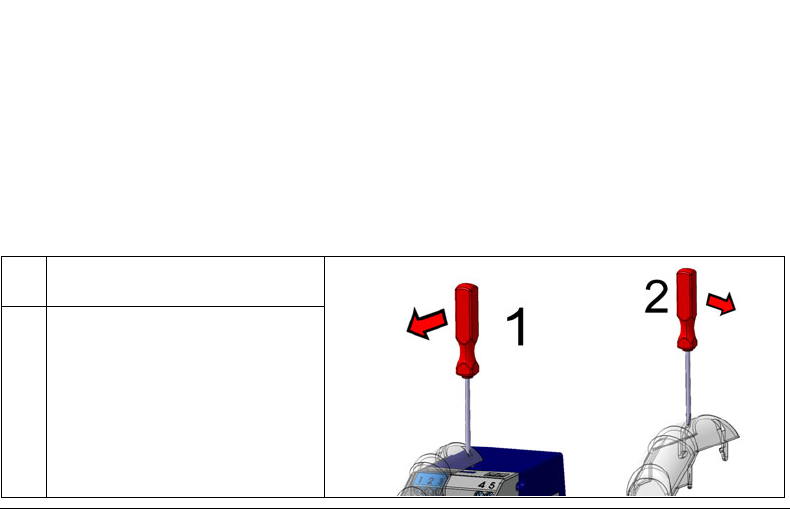

1
h Stick the screwdriver in the right open-
ing of the cover cap and pry up to the
left.
2
h Hold the cover cap and pry up the sec-
ond catch in the left opening to the right.
