10 Setup program
121
2013-04-01
3

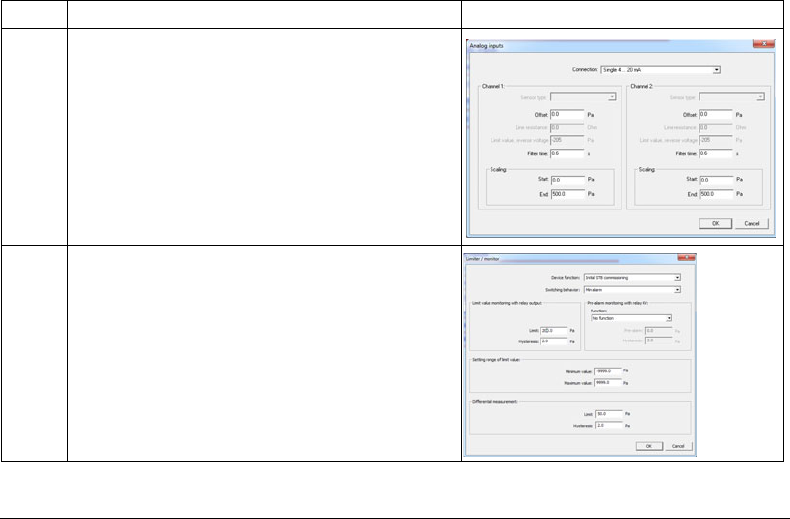

h In the Analog input menu, set Single 4to20mA. Further
input fields for scaling appear.
h For both channels, enter Start: 0 and End: 500 and con-
firm with OK.
4
h In the Limiter/Monitor menu, set STB or Initial STB com-
missioning. Set Switching behavior: to Min. alarm and
confirm with OK.
h Enter the required limit value (in Pa) and hysteresis.
Step Action Description
