MA
35

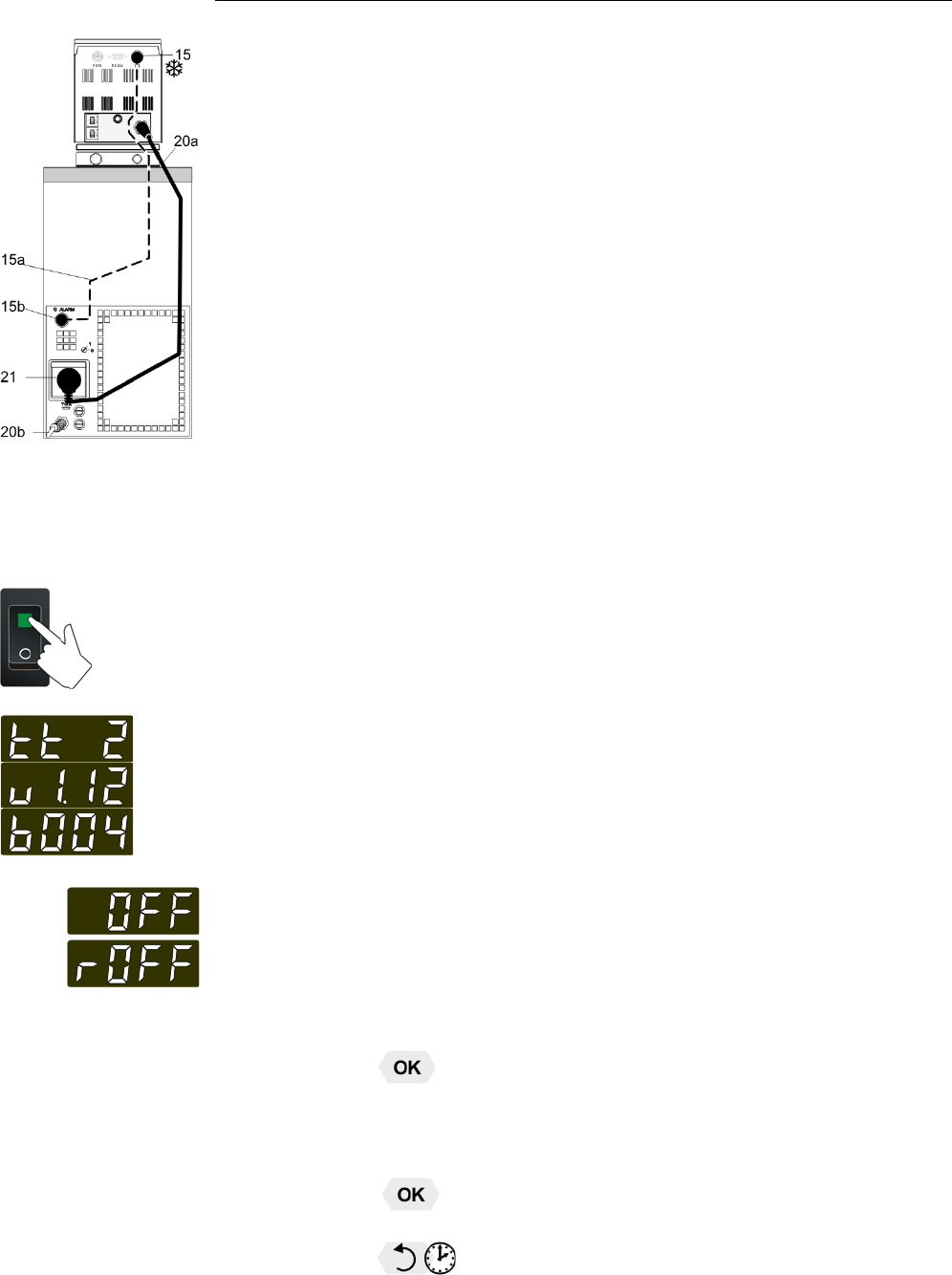

• Connect the circulator with mains power cable (20a) to the
mains outlet (21).
• Connect the control cable (15a) between the connectors (15,
15b).
• Connect the refrigerated circulator with mains power cable
(20b) to the mains socket.
6.2. Switching on / Start – Stop
6.2.1. Switching on the circulator
Switching on:
• Turn on the mains power switch (1).
The unit performs a self-test. All segments of the 4-digit MULTI-
DISPLAY (LED) and all indicator lights will illuminate.
Then the software version (example: tt 2, V1.12, b004))
appears. The display „OFF“ or „R OFF“ indicates the unit is
ready to operate.
The circulator enters the operating mode activated before
switching the circulator off:
keypad control mode (manual operation)
or
remote control mode (operation via personal computer).
Start:
• Press key.
The actual bath temperature is displayed on the LED-
DISPLAY. The circulating pump starts with a slight delay.
Stop:
Press key.
or
Keep key pressed.
The LED -DISPLAY indicates the message "OFF".
