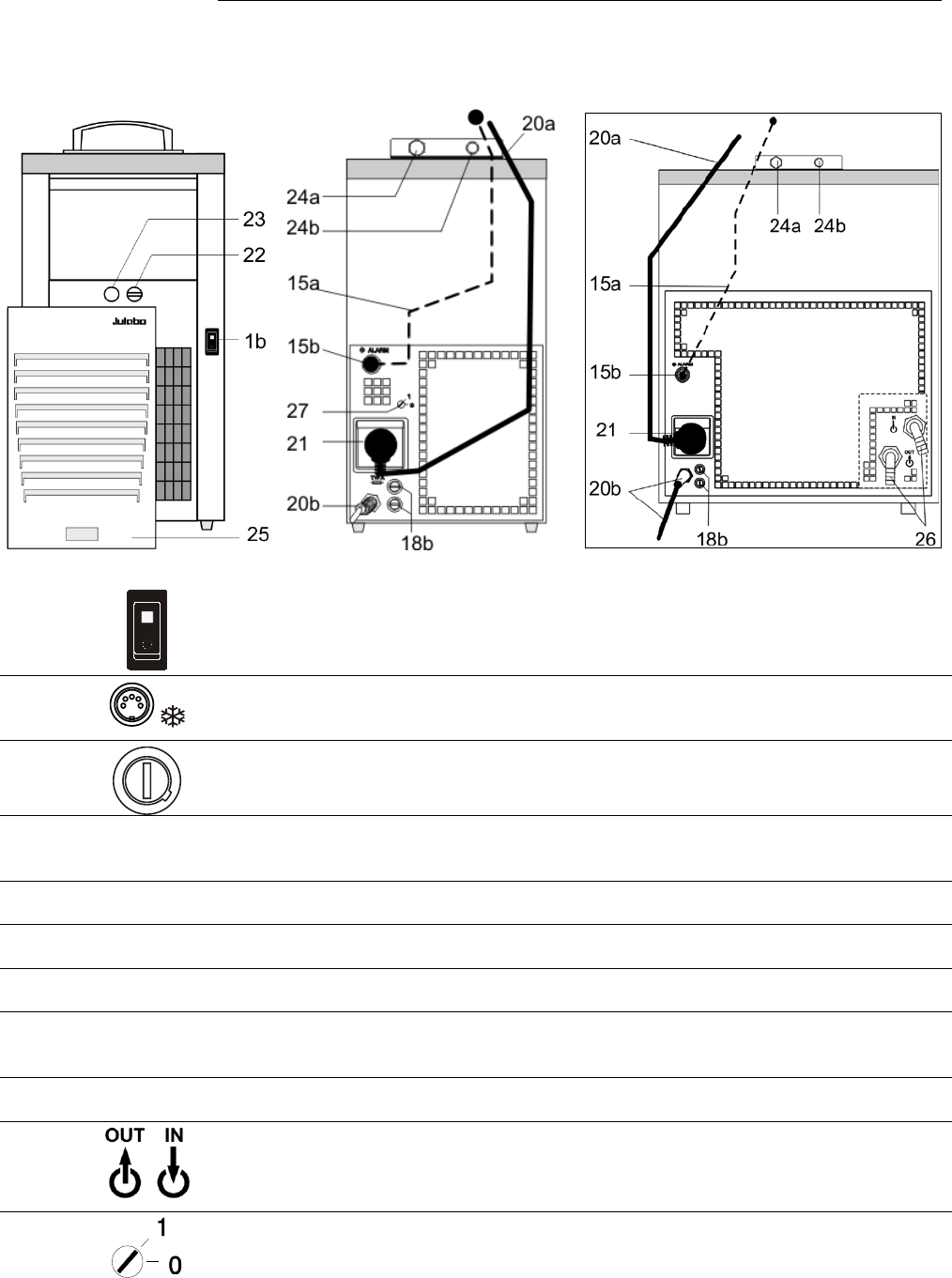

4.2. Cooling Machine
Front view Rear view Rear view FPW
1b
Mains power switch, illuminated for cooling machine
15a
15b
Socket: control cable of JULABO refrigerated circulator
18b
Mains fuses for cooling machine, T10A, D5 x 20 mm
20a
20b
Mains power cable with plug for circulator
Mains power cable with plug cooling machine
21 Built-in mains outlet for connection of circulator
22
Drain tap
23
Drain port
24a
24b
Pump connector: feed
Pump connector: return
25 Venting grid, removable
26
Only water cooled models:
Cooling water OUTLET and INLET. G ¾”
27
Selector dial for cooling machine (only F25, F34)
Position "1" for operation with ME circulator.
