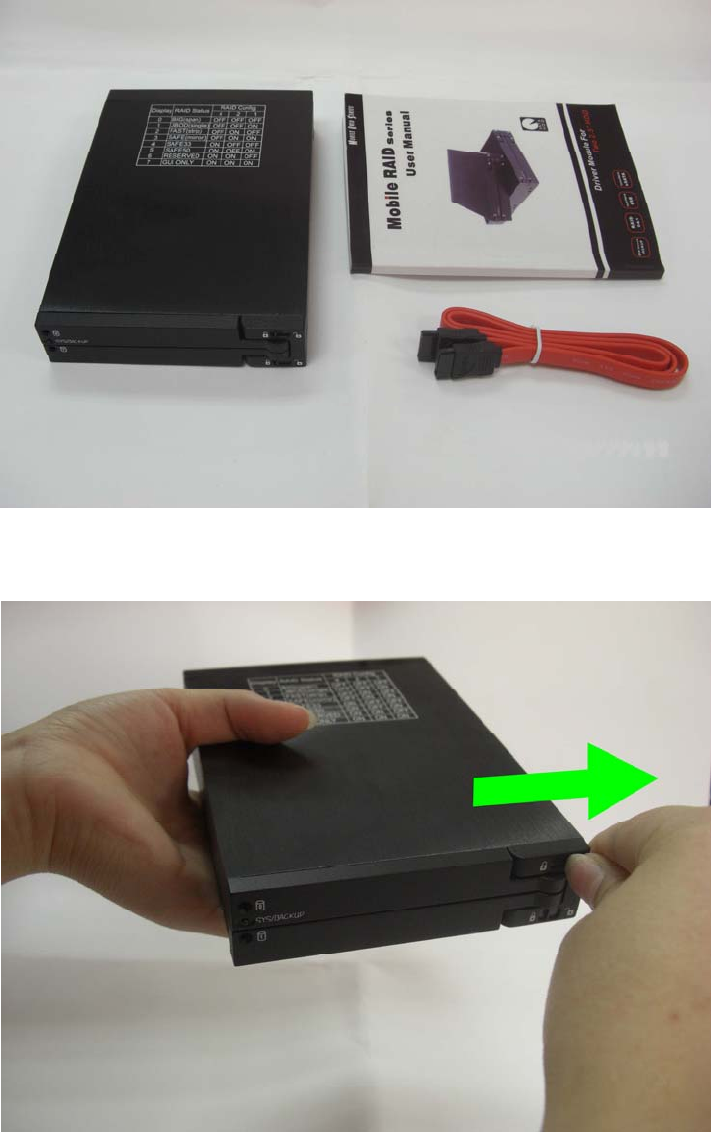

Quick Installation Guide JJ-1225SUSRI (A) Hardware Installation: 1. Standard packaging contains: 2. Push the ”LOCK” rightward to unlock the upper HDD door. The same for the lower HDD door.
3. Open the front door as the direction shown on the picture 4.
5．Push back the two HDD doors back until the HDD doors close to the cage(see following picture) 6. Push the LOCK leftward to lock the two HDD doors.
7.
將 7pin 電源線和 SATA 傳輸線插入相應接口 ٛ C) Click mouse right button on “My computer” and choose “manage” by clicking mouse left button D) Choose “Disk Management” by clicking mouse left button
E) the “Disk Manage shows the hard disks are “Not Install” & “Unallocated” F) Click mouse right button over the red forbid sign and choose “Initialize Disk ”by clicking mouse left button
G) Press ”OK” H) Refer steps g) & h) to Initialize Disk 2
j.
J) Choose ”Next” K) Choose ”Next” again.
M) Tick “Quick format” and click ”Next” N) Click ”Finish”
O) Disk Manager shows “Formatting” P) When format is finished , it shows “Healthy”
Q) Format the other hard disk by refer to steps k) ~s) R) When format is finished, “My Computer” will shows two Physical hard disks
(B)How to build Raid Mode BIG or SAFE50 B-1 How to build Raid : BIG(Span) Set the DIP Switch as following Display RAI D Status 0 BIG (span) RAID Config 42 OFF 1 OFF OFF B1-1 Set the DIP switch as above and Refer to Step C) ~ R) to build the Raid BIG(Span) mode. This time you can see only 1 hard disk only (see following two pictures.
B-2 How to build Raid : SAFE50 B2-1 Set the DIP switch as following and Refer to Step C) ~ R) to build the Raid SAFE50 mode. This time you can see 2 hard disks ( one is mirror hard disk and the other, BIG. See following two pictures.
B-2a See two hard disks B-2b See two healthy hard disks After Raid SAFE50 is finished, you can see two new hard disks, one is with Raid mirroring and the other is with Raid BIG.
Appendix If you are using ESATA, you will have to connect both mini USB and USBto 5v cables. Trouble shooting A> Can only see “8GB Unallocated” Possible reasons are: a-1 Does not install any hard disk. a-2 First time installation and “Forgot to press “Change Mode” button once. a-3 You have changed the Raid mode but forgot to press “Change Mode” button once.
c-1 This is because the Safe(Mirror) mode is under rebuilding. It usually occurred on your first time setting the Safe(Mirror) mode or you change the new hard disks. c-2 The LED blinking will return to normal after rebuilding process finished. c-3 While the Safe(Mirror) is under rebuilding or verifying, you can still use the hard disks, only the performance will be slower than expected.
