Assembly & Installation Instrutions

Turn on the power at fuse or circuit box
Turn off the power at fuse or circuit box
The following parts are available for re-order if damaged or missing.
Spare Parts List:
1. Thread two fixture mounting screws (D) through the cross bar (A), then secure them with two lock nuts (E).
2. Attach the cross bar (A) to the outlet box by using two mounting screws (B).
3. Pull out the outlet wires and housing grounding wire from the outlet box. Make wire connections using the wire
connectors (F):
---The black wire from the fixture to the black wire from the power source.
---The white wire from the fixture to the white wire from the power source.
---Attach the fixture grounding wire to the cross bar (A) with the green grounding screw (C). Then connect it to
the house grounding wire with a wire connector (F).
Carefully put the wires back into the outlet box.
4. Attach the main frame to the cross bar (A) by inserting two fixture mounting screws (D), then secure it with
the ball nuts (G).
5. Install bulbs (not included). See relamping label on socket area or packaging for maximum allowed wattage.
6. Place the bottom glass panel into the metal frame, and set
two "S"clips (H) on each side of bottom glass and hold
the bottom glassthe four "S" clips (H) and hold the bottom
glass panel by inserting the side glass panels inside the
metal frame. Then press the top clips of the metal frame to
secure the side glass panels. (See Fig.1 Fig.2)
7. Attach the metal frame to the main frame, then secure it
with two rectangular nuts.
A
B
A: 12"
B: 5-1/4"
Green Grounding
Screw (C)
Fixture Mounting screw (D)
Mounting Screw (B)
Wire Connector (F)
Lock Nut (E)
Ball Nut (G) Clip (H)
Cross Bar (A)
Bottom Glass Panel
"S" Clip

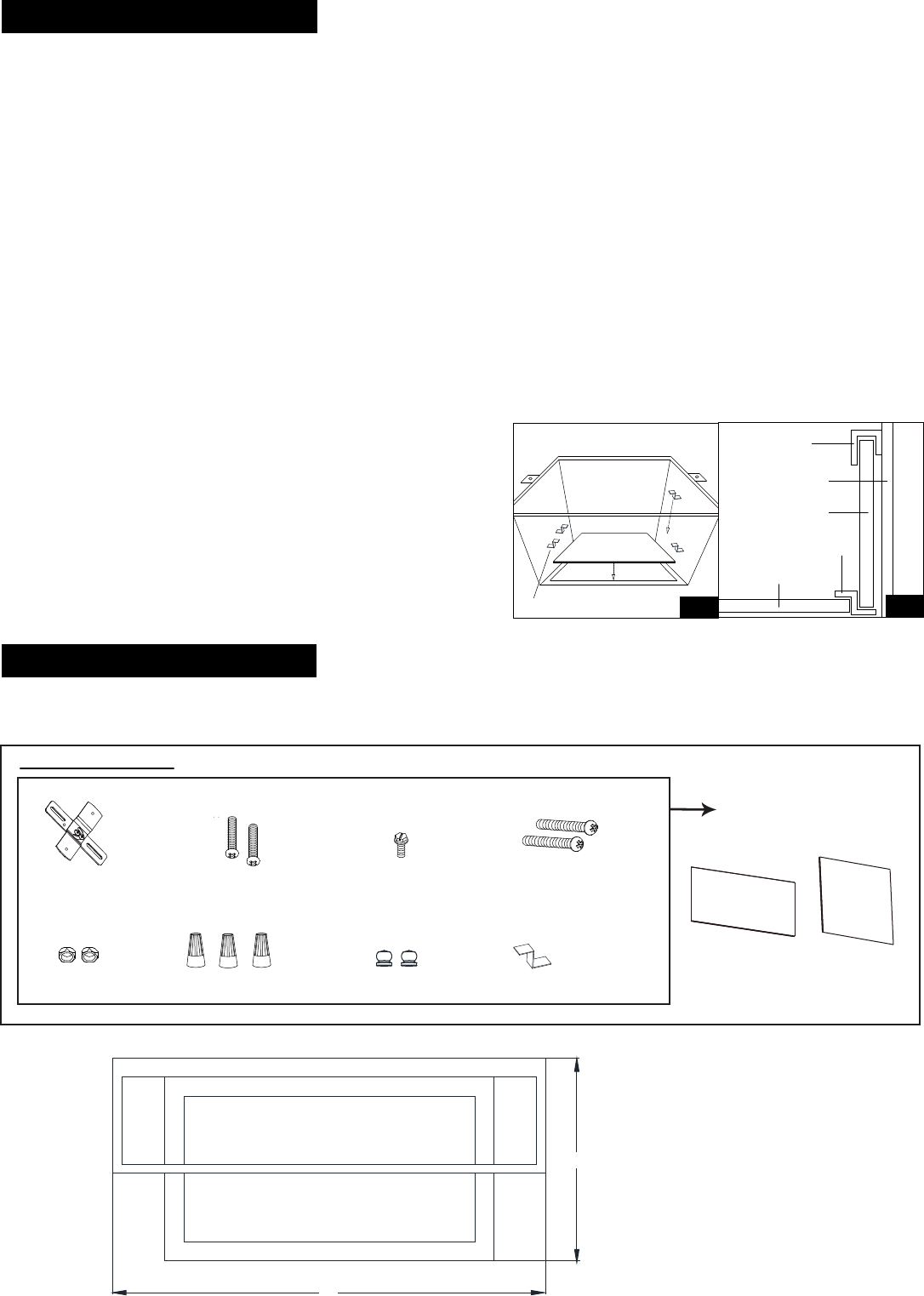

Fig.1
Fig.2
X 9
"S" Clip
Side Glass Panel
Bottom Glass Panel
Metal Frame
Top Clip
Assembly Kit
(1SET)
Glass X 4
Glass X 1
