Assembly & Installation Instrutions

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

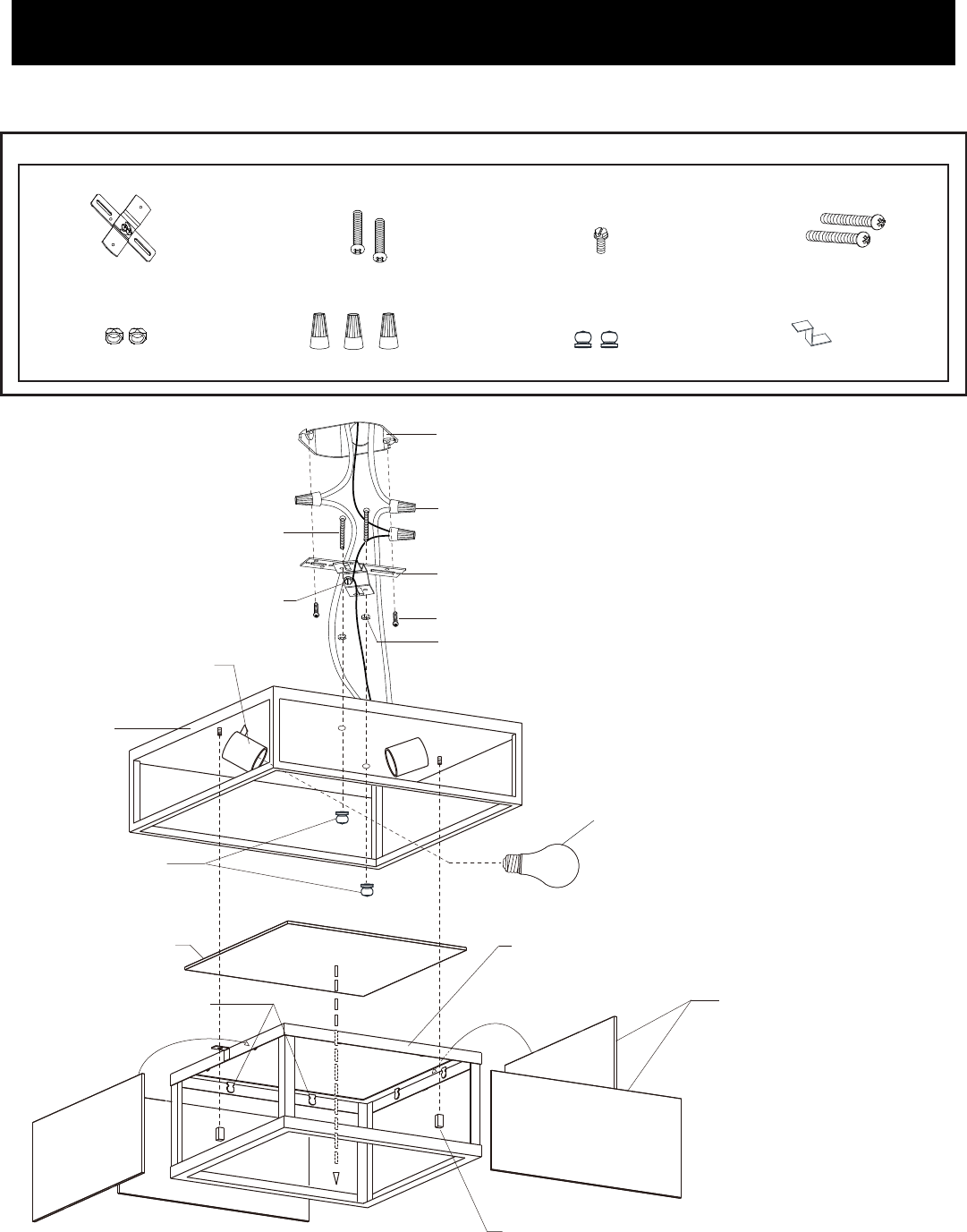

Hardware Package (included):

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Green Grounding

Screw (C)

Fixture Mounting screw (D)

Mounting Screw (B)

Wire Connector (F)

Lock Nut (E)

Ball Nut (G)

“S” Clip (H)

X 9

Top Clip

Socket

Rectangular Nut

Bottom Glass Panel

Metal Frame

Side Glass Panel

Main Frame

Bulb Type A Max.60W

(not included)

Ball Nut (G)

Cross Bar (A)

Outlet Box

Wire Connector (F)

Cross Bar (A)

Green Grounding Screw (C)

Mounting Screw (B)

Lock Nut (E)

Fixture Mounting Screw (D)

PAGE 1
ASSEMBLY AND INSTALLATION INSTRUCTIONS WARNING: TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE. NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS.
PAGE 2
Turn off the power at fuse or circuit box 1. Thread two fixture mounting screws (D) through the cross bar (A), then secure them with two lock nuts (E). 2. Attach the cross bar (A) to the outlet box by using two mounting screws (B). 3. Pull out the outlet wires and housing grounding wire from the outlet box. Make wire connections using the wire connectors (F): ---The black wire from the fixture to the black wire from the power source.
