9. PACKAGE INFORMATION
9.1. NGFF Type 2226 Specification from PCI-e M.2_Rev1.0
※

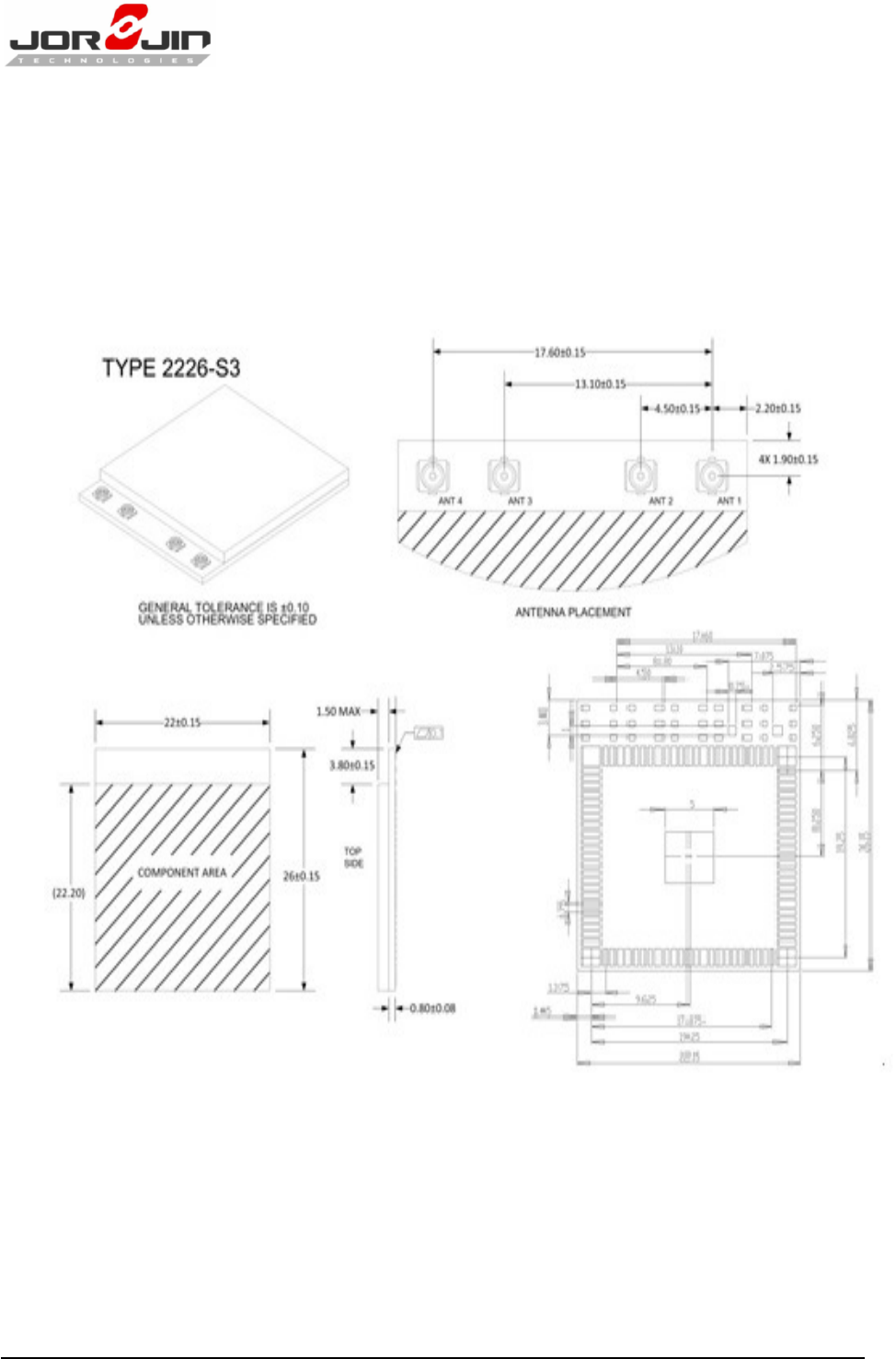

Figure 9-1. M.2 Type 2226-S3 Mechanical Outline Drawing
