5.2. SDIO Timing Specifications
5.2.1. SDIO Switching Characteristics – Default Rate

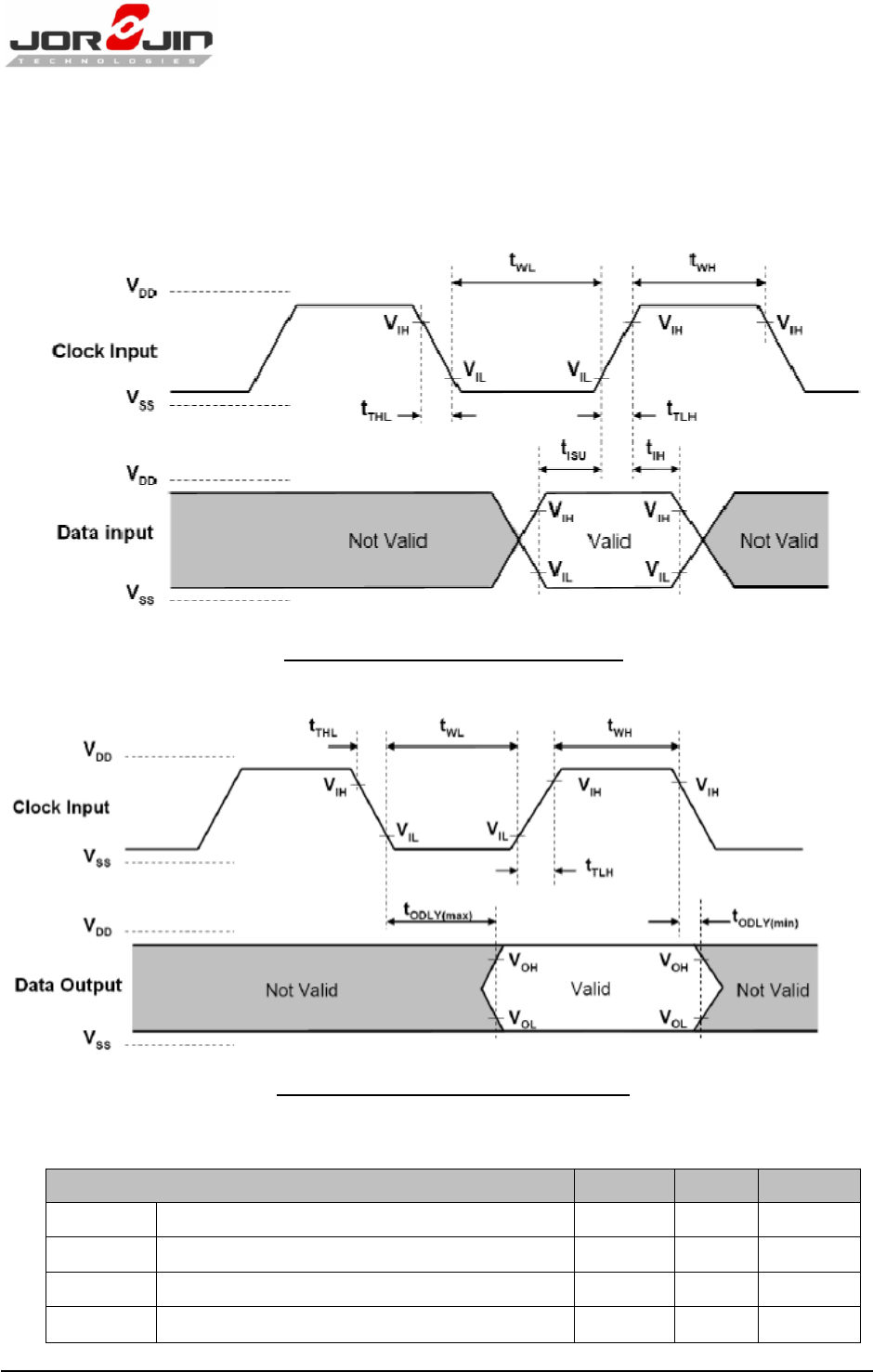

Figure 5-1. SDIO default input timing
Figure 5-2. SDIO default output timing
Table 5-1. SDIO Default Timing Characteristics
(1)


   
    
    
    
    
