7. SMT AND BAKING RECOMMENDATION

7.1. Baking Recommendation

 Baking condition：

- Follow MSL Level 4 to do baking process.

- After bag is opened, devices that will be subjected to reflow solder or other high

temperature process must be

a) Mounted within 72 hours of factory conditions <30°C/60% RH, or

b) Stored at <10% RH.

- Devices require bake, before mounting, if Humidity Indicator Card reads >10%

If baking is required, Devices may be baked for 8 hrs. at 125 °C.

7.2. SMT Recommendation

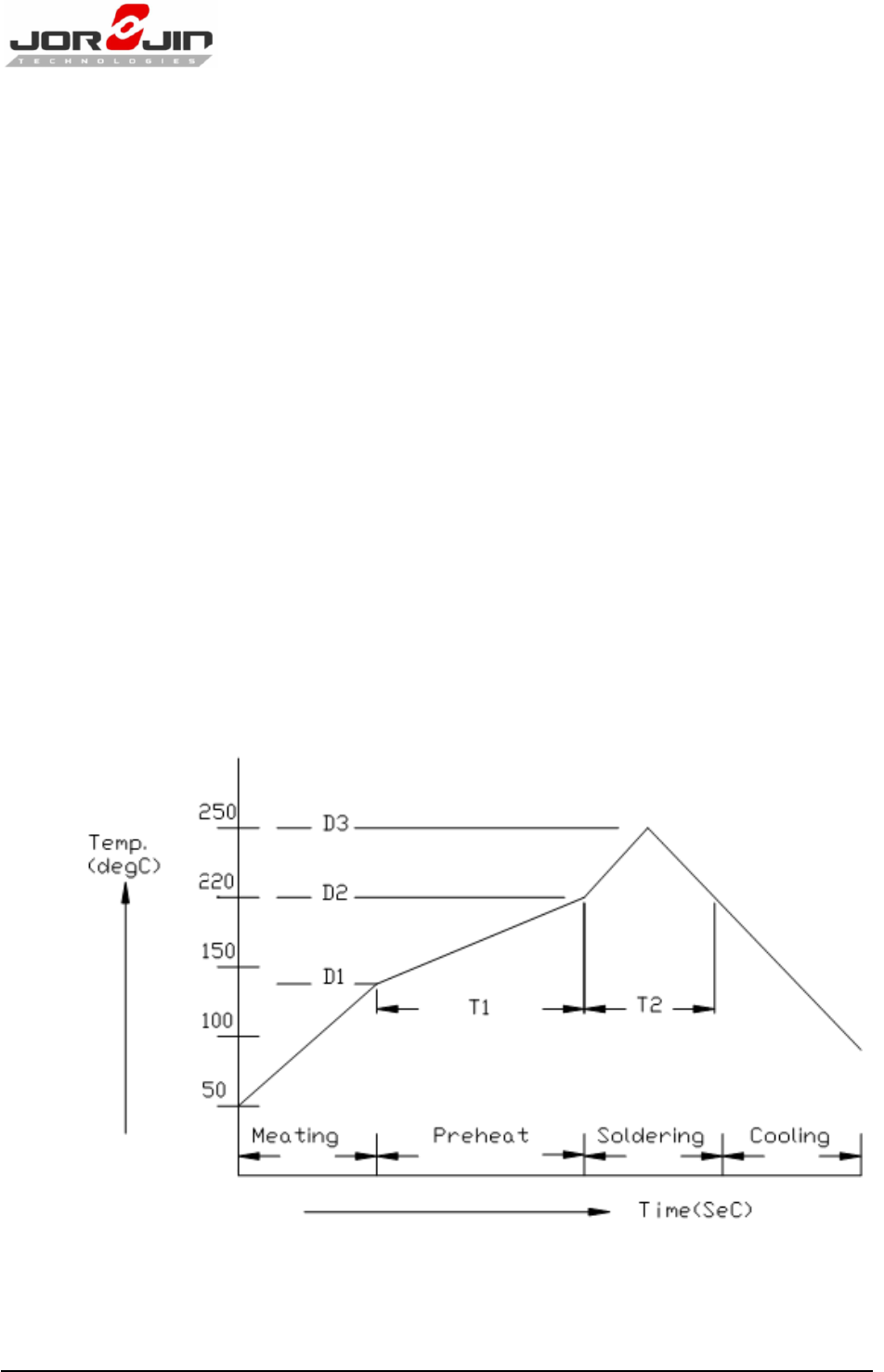

 Recommended Reflow profile：
