3. Operation Guide

(a) Battery Installation

• Open the battery-box cap and connect the cords inside with the

two polarities of the 9V battery. Note: Take the battery out if

detector is not used for a long time.

• Put the 9V battery into the battery box and close the battery-box cap.

(b) Power on

• Press the on/off button. When power symbol is

displayed, the detector is ready for coarse detection.

• When low battery symbol is displayed, change the

battery.

• Press the on/off button again to turn off the detector.

1. clamp bolt

2. screw

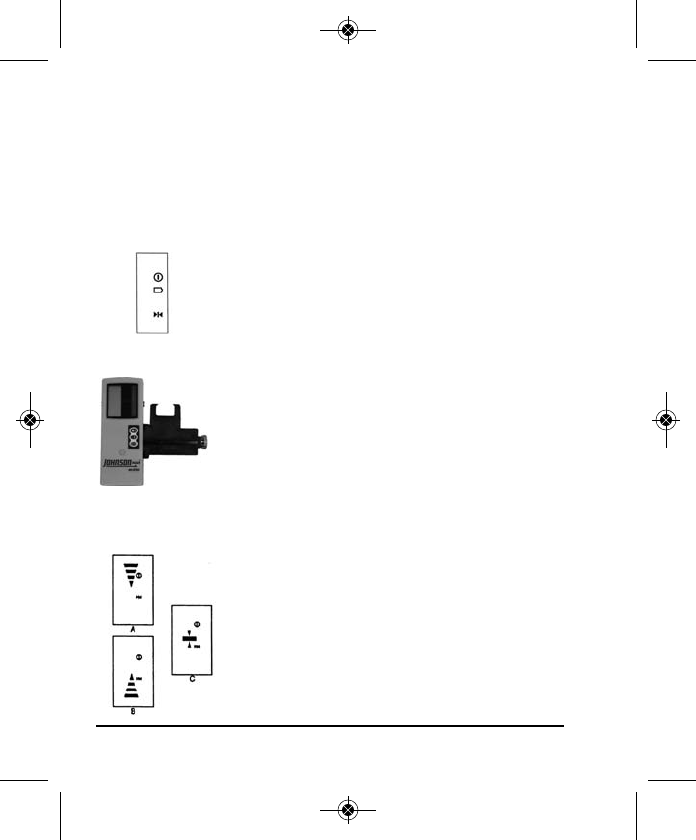

• Position the detector on the clamp holder using

the screw on the clamp holder.

• Position the clamp holder on rod using the clamp

bolt on the clamp holder.

(d) Detecting Laser Level Signals

1. Coarse detection

• Aim the receiving window at the rotating

laser. Loosen the clamp bolt and move the

detector up and down to receive the laser

signals transmitted by the rotating laser.
