Johnson Controls Vibration Diagnostics Service Installation Guide
7
Table 4: WVS-1000 DAQ LED indicators and button
2. Open the Johnson Controls Vibration Diagnostics Service mobile app. Enter your login credentials and press
>GO.
3. To return to the OPEN tab.
4. In the OPEN tab, select an open job or press + to start a new job. For additional operating instructions, refer to
the training videos that can be found in the app.
Indicator LED or button Indicator
name
Description
0-15% 15-50% 50-80%80-100% Battery
capacity
Four green LEDs indicate the battery capacity.
Bluetooth
connectivity
One solid blue LED indicates connectivity to the smart
device.
Wi-Fi
connectivity
One solid blue LED indicates that Wi-Fi is active for the
WVS-1000 DAQ.
Data status One blue and green LED indicates data capture.
• Solid blue: Indicates that the device is capturing
data
• Flashing green: Indicates internal processing
activity
Power
button
Power button
• Press the button for 6 seconds to turn on.
• Press the button for 12 seconds to turn off.
• One single press indicates battery life on the
battery capacity LEDs.

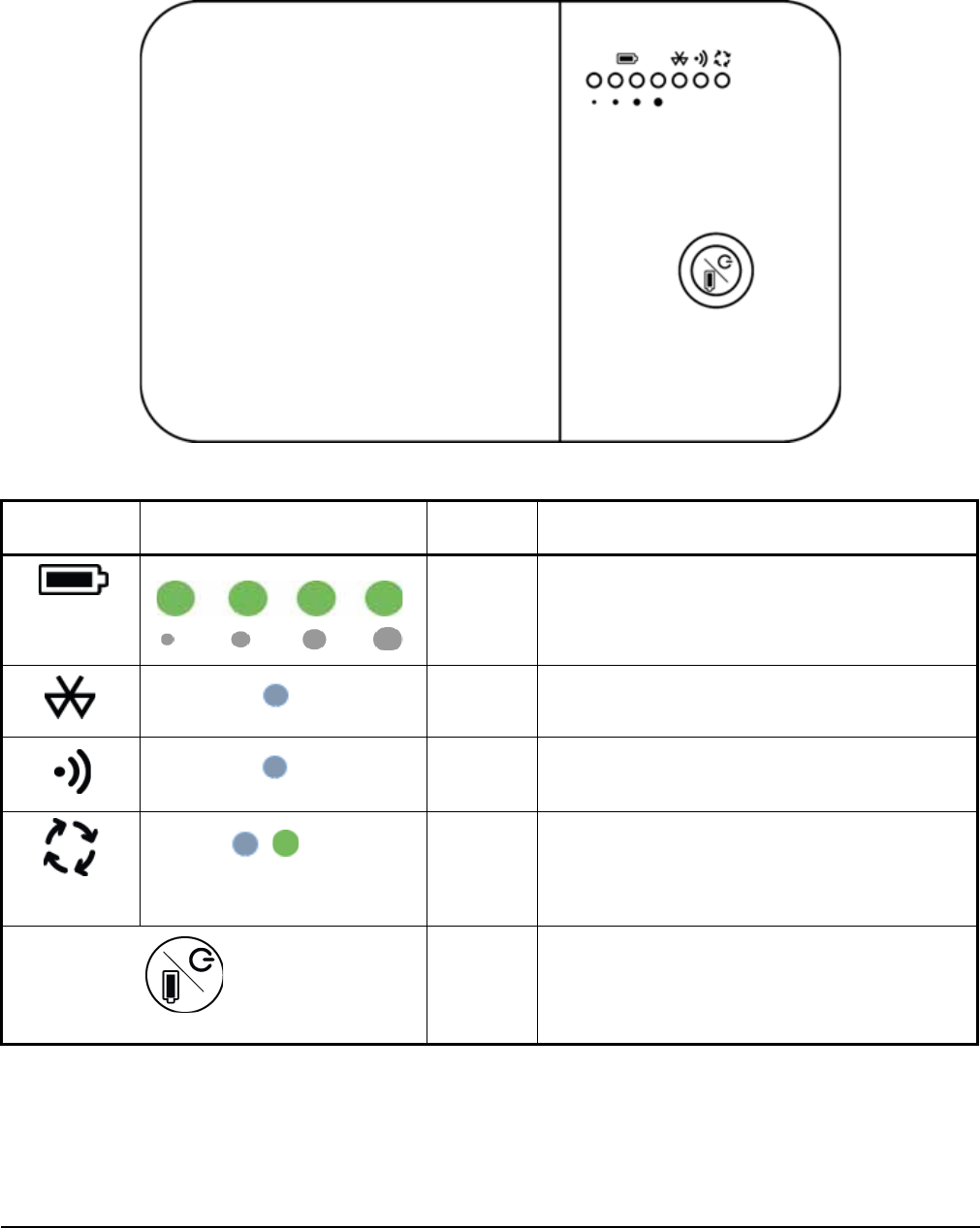

Figure 6: WVS-1000 DAQ LED indicators and button
