M9220-GGx-3 Proportional Electric Spring Return Actuators Installation Instructions 9
Tandem Operation: GGx Master with
GGx Slaves
The tandem configuration (Figure 13 and Figure 15)
provides twice (with two actuators) or triple (with three
actuators) the running and spring return torque of a
single actuator, or 354 lb·in (40 N·m), 531 lb·in
(60 N·m). The actuators may be mounted in tandem
using the M9000-158 Tandem Mounting Kit. To mount
a third actuator, user-configured bracketing is
required..
Follow these guidelines for tandem operation:
• Two or three M9220-GGx-3 actuators may be
operated in tandem on the same shaft. If mounting
two actuators, see Figure 13; for three actuators,
see Figure 15.
• Each actuator requires separate 24 volt power.
When two or more actuators connected in tandem
share a common power source, the total maximum
power draw is actually 1.5 times the normal
running current for each actuator.
(Total Power = Number of Actuators x Running
Power x 1.5).
• Only one of the actuators can be configured as the
master. Set the selector switch to the master
position (Figure 14).
• The other GGx actuator(s) must be configured as
slave(s), by setting the tandem selector switch to
the slave position.
• The master can accept DC 0-10 V or DC 2-10 V, or
4-20 mA command signals based on the master’s
switch settings and/or external resistor.
• The master and slave(s) must have matching
RA/DA settings..

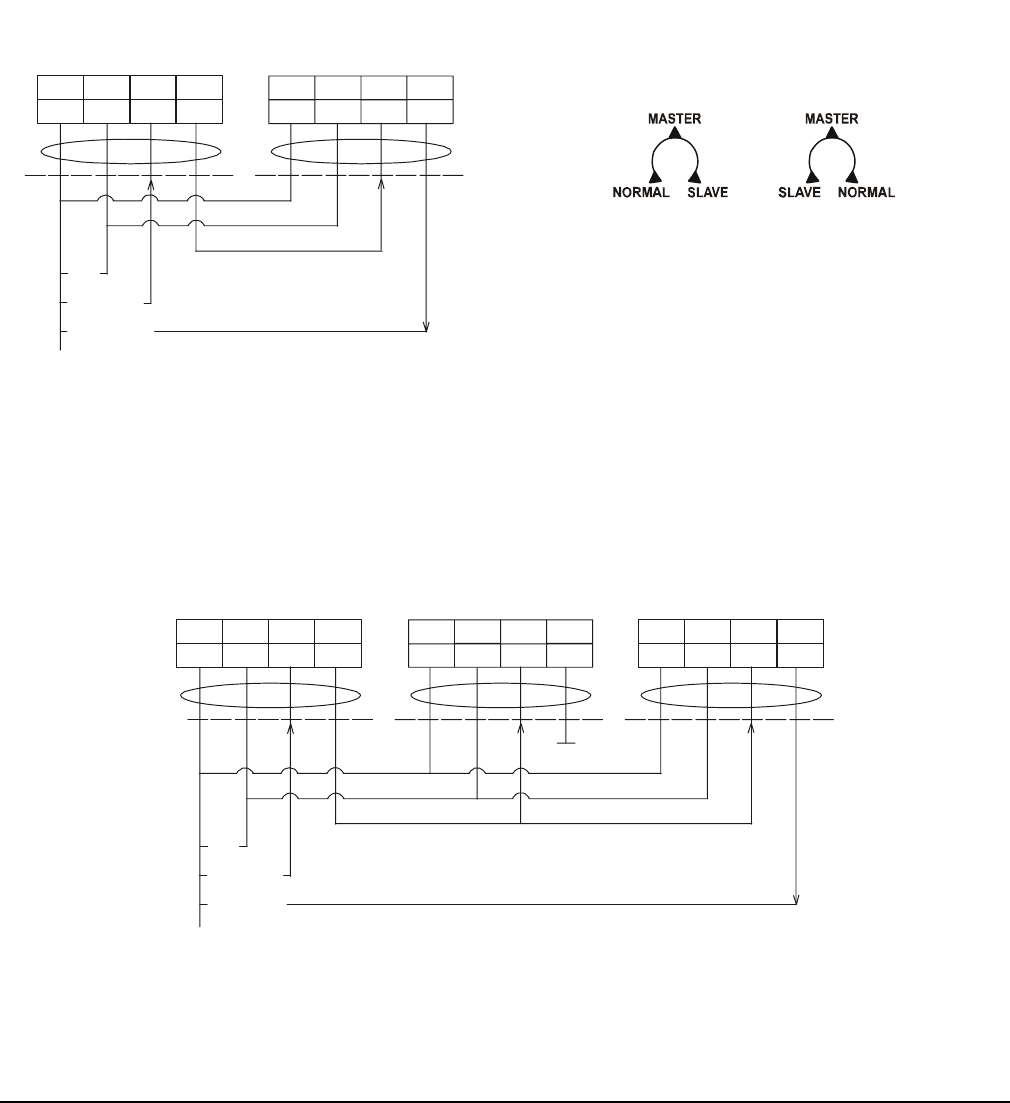

Figure 13: Tandem Connection
F
I
G
:
t
a
n
d
e
m
1
Master
(M9220GGx actuator)
DC 0(2)...10V Control with Tandem Connection
Slave
( only)M9220GGx actuator
Y
DC 0(2)...10 V
+
U
+
1
2
34
BLK
RED
GRY
ORN
AC/DC
24 v
~ (+)
DC 0(2)...10 V
COM
+
1
2
3
4
BLK
RED
GRY
ORN
select
Side A of Actuator Side B of Actuator
Figure 14: Tandem Selector Switch
Figure 15: Tandem Connection with Three Actuators
F
I
G
:
t
a
n
d
2
Y
DC 0(2)...10 V
+
Master
(M9220GGx actuator)
U
+
12
34
BLK
RED GRY ORN
DC 0(2)...10V Control with Multiple Slaves
Slave
(only)M9220GGx actuator
AC/DC
24 V
~ (+)
DC 0(2)...10 V
COM
+
12
34
BLK
RED GRY ORN
Slave
( only)M9220GGx actuator
+
12
34
BLK
RED GRY ORN
