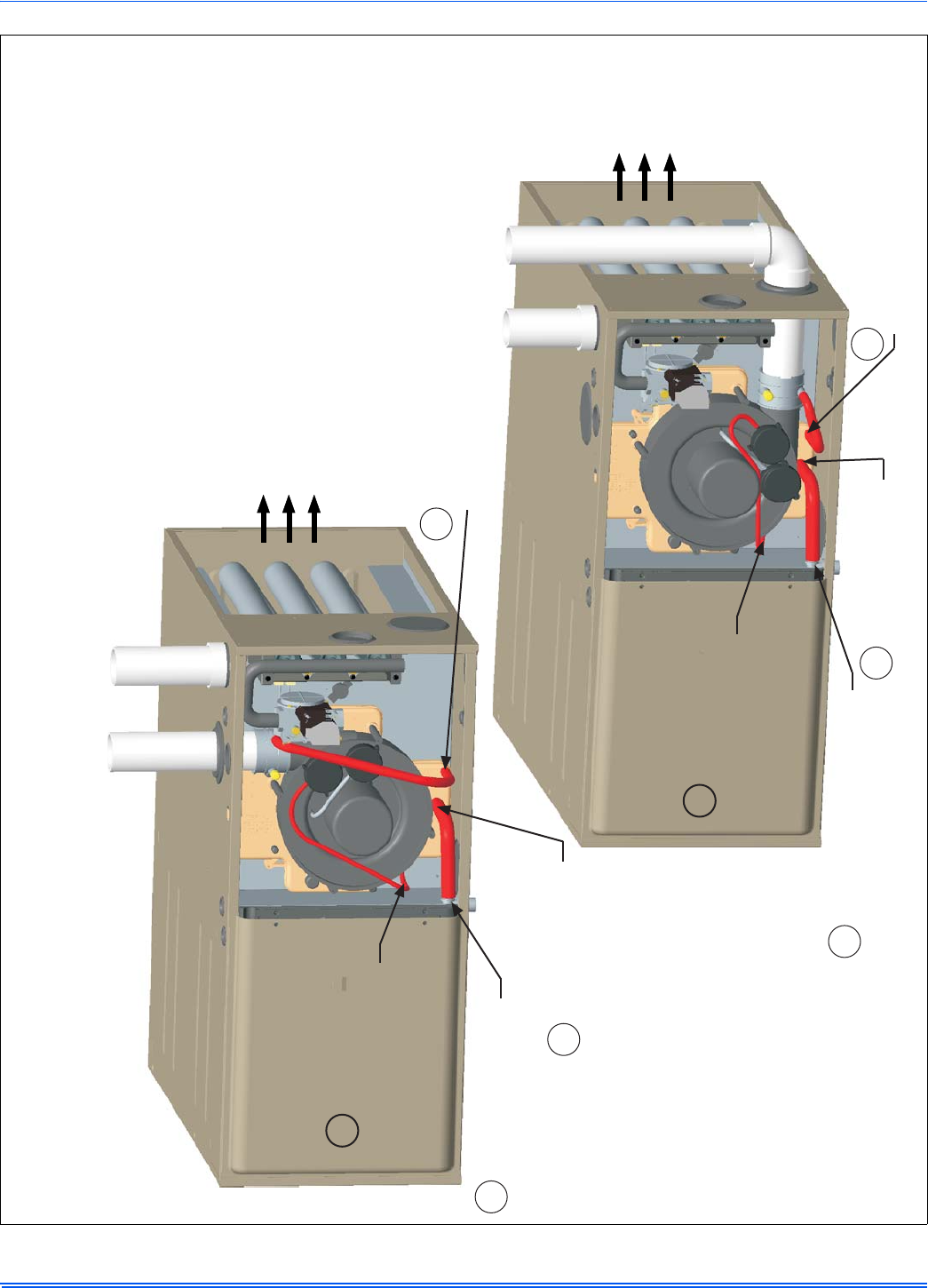

FIGURE 25: Horizontal Right Configuration

AIRFLOW

HORIZONTAL - RIGHT

INDUCER ROTATED

HORIZONTAL - RIGHT

INDUCER AS RECEIVED

Move rain gutter

hose to this position

Move pressure

switch hose to

this position.

Change condensate

drain connection to

the 90° fitting

provided

Move condensate

drain hose to

this position

Move rain gutter

hose to this position

Change condensate drain

connection to the 90°

fitting provided

Move condensate

drain hose to this position

AIRFLOW

Move pressure

switch hose to

this position.

When drain hose routing changes are required, be sure to cap all un-used openings.

If rerouting hoses - excess length should be cut off so that no sagging loops will collect

and hold condensate, which will cause the furnace to not operate.
