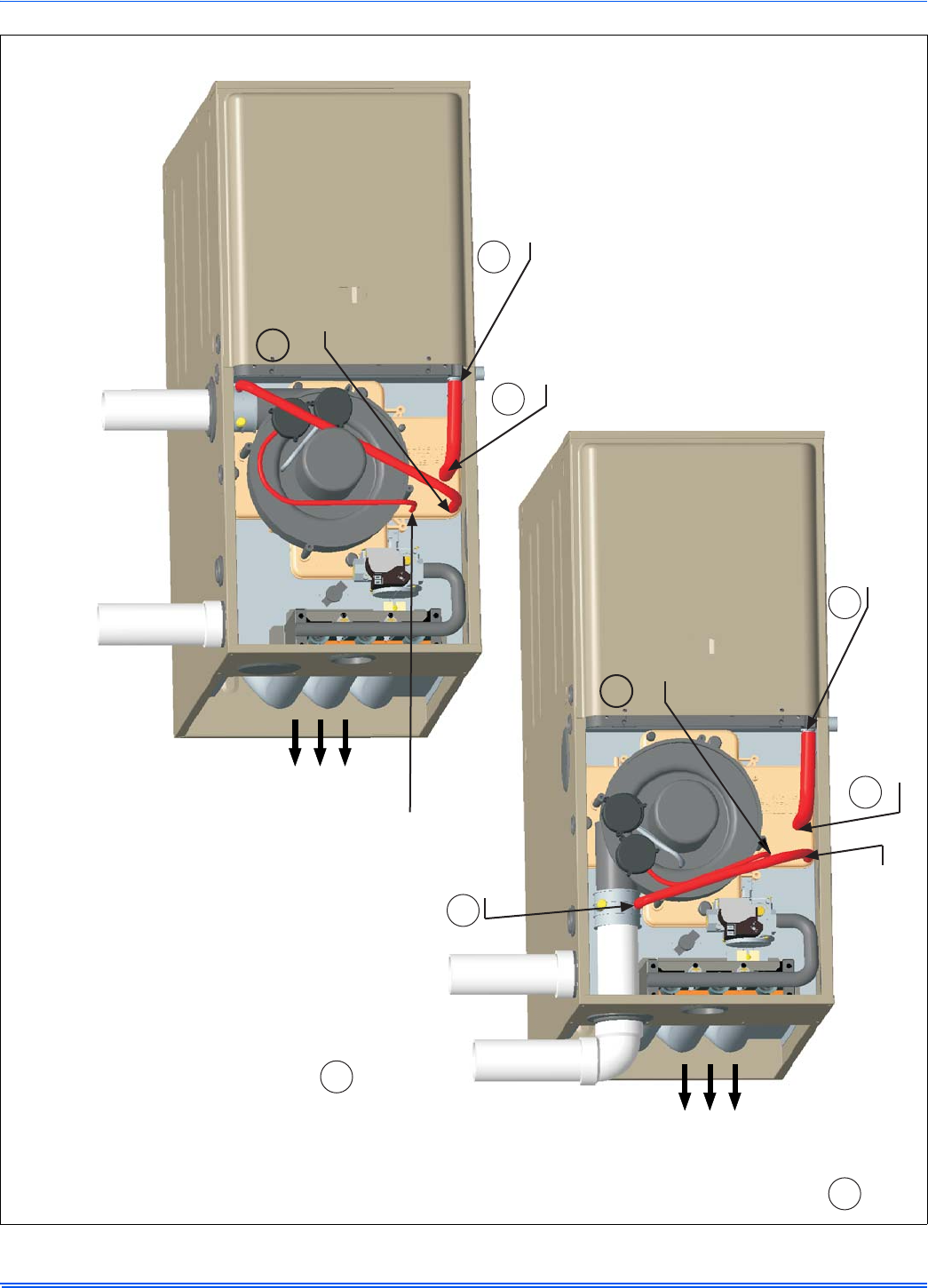

FIGURE 24: Horizontal Left Configuration

HORIZONTAL - LEFT

INDUCER ROTATED

HORIZONTAL - LEFT

INDUCER AS RECEIVED

AIRFLOW

Move pressure switch hose

to this position.

NOTE: May require the longer

hose that is provided with

wider cabinets

Move rain gutter hose to this position

NOTE: May require hose extension

that is provided with wider cabinets

Move rain gutter

hose to this position

Move pressure switch

hose to this position.

NOTE: May require

the longer hose that

is provided with

wider cabinets

Change condensate drain

connection to the 90° fitting provided

Move condensate

drain hose to this position

Move rain gutter hose to

this position

NOTE: May require hose

extension that is

provided with wider

cabinets

Move

condensate

drain hose to

this position

Change condensate

drain connection to

the 90° fitting provided

When drain hose routing changes are required, be sure to cap all un-used openings.

If rerouting hoses - excess length should be cut off so that no sagging loops will collect

and hold condensate, which will cause the furnace to not operate.
