Owner's Manual Part 2

471
uuFusesuFuse Locations
Continued
Handling the Unexpected

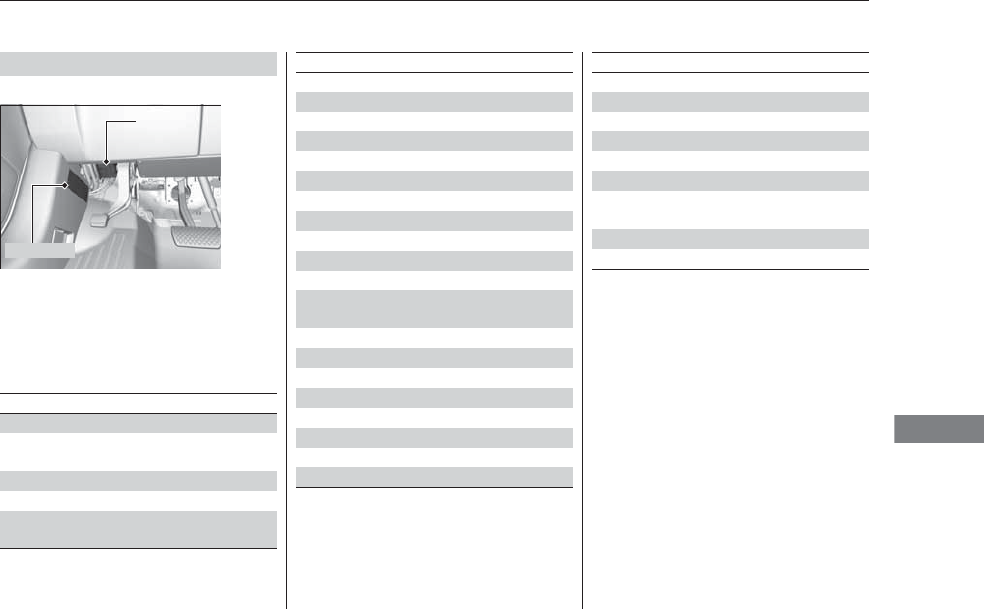

Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■ Circuit protected and fuse rating
■
Driver’s Side Interior Fuse Box
Fuse Box
Fuse Label
Circuit Protected Amps
1 Passenger’s Side Door Lock 10 A
2
Rear Passenger’s Side Door
Lock
7.5 A
3 Driver’s Side Door Lock 7.5 A
4 Passenger’s Door Unlock 10 A
5
Rear Passenger’s Side Door
Unlock
7.5 A
6 Driver’s Side Door Unlock 7.5 A
7 Door Lock Main 20 A
8 HAC OP 10 A
9 ETS TELE 20 A
10 IG1 RR Box 15 A
11 IG1 Meter 7.5 A
12 IG1 FR Box 20 A
13 ACC 7.5 A
14 − −
15 Driver’s Power Seat Sliding 20 A
16 Moonroof 20 A
17
Rear Driver’s Side Power
Window
20 A
18 SMART 10 A
19 Driver’s Power Window 20 A
20 − −
21 Fuel Pump 20 A
22 AS Box 15 A
23 VSA 7.5 A
24 ACG AS 7.5 A
25 STRLD 7.5 A
Circuit Protected Amps
26 IG2 HAC 7.5 A
27 IG2 DRL 7.5 A
28 ACC Key Lock 7.5 A
29 Driver Power Lumber 7.5 A
30 Interior Lights Cut 7.5 A
31 ETS TILT 20 A
32
Driver’s Power Seat
Reclining
20 A
33 − −
34 − −
Circuit Protected Amps
