Other Features
A 3.5 mm stereo output jack contains a mic level signal
suitable for recording, with the beltpack headphone
signal on the left channel and the Bluetooth return audio
on the right.

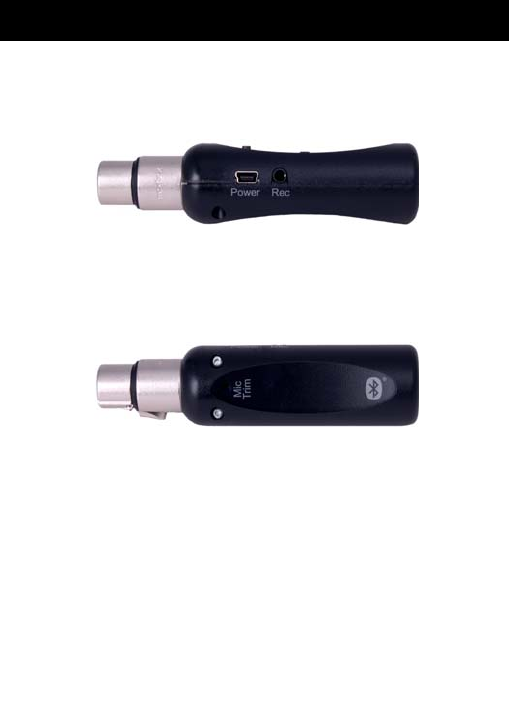

A small flat blade screwdriver can be used to adjust the
Mic Trim pot on the back of the unit. This adjusts the
level of the audio coming from the Bluetooth device as it
is sent into the Belt Pack headset connector.
The XLR pinout on these devices is as follows:
Pin 1: Headset mic (low)
Pin 2: Headset mic (high)
Pin 3: Headphone (low)
Pin 4: Headphone (high)
Pin 5: Headphone (high) - for BlueSet-F5/M5
Note: Pins 4 and 5 are mixed together on the BlueSet-
F5/M5 to accommodate dual-sided headsets.
