Installation Instructions

3
INSTALLATION REQUIREMENTS
These installation instructions cover different models. The
appearance of your particular model may differ slightly from the
illustrations in these Installation Instructions.
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
■ Tape measure
■ #2 Phillips screwdriver
■ Drill
■
1
/
8
" (3.17 mm) drill bit
■ Marker or pencil
Parts supplied
The Microwave Drawer is preassembled.
■ 1” (2.5 cm) mounting screws (4)
■ 1” (2.5 cm) deector screws (2)
■ Flush mount deector (1)
Verification needed
■ Installer must conrm presence of anti tip block. Refer to the
anti-tip block section in the manual.
■ Check local codes. Check existing electrical supply. See
“Electrical Requirements.”
■ It is required that all electrical connections be made by a
licensed, qualied electrical installer.
Location Requirements
This product is suitable for use below electric or gas built-in
ovens. This product is not suitable for use below cooktops.
The Microwave Drawer may be located in a cabinet or below
the counter, and/or below a built-in oven. Check the opening
where the Microwave Drawer will be installed. The location must
provide:
IMPORTANT: Observe all governing codes and ordinances.
■ Wood cabinetry.
■ Cutout opening that is plumb and square. See “Minimum
Cutout Dimensions” in the “Minimum Dimensions” section.
■ Cutout oor that is solid, level, and ush with bottom of
cabinet cutout.
■ Support for weight of at least 100 lbs (45.4 kg), which
includes Microwave Drawer and items placed inside.
■ Grounded electrical outlet. See the “Electrical Requirements”
section.
■ Minimum installation clearances for installation location. See
the “Minimum Dimensions” section.
■ Complete enclosure around the recessed portion of the
Microwave Drawer.
Minimum Dimensions

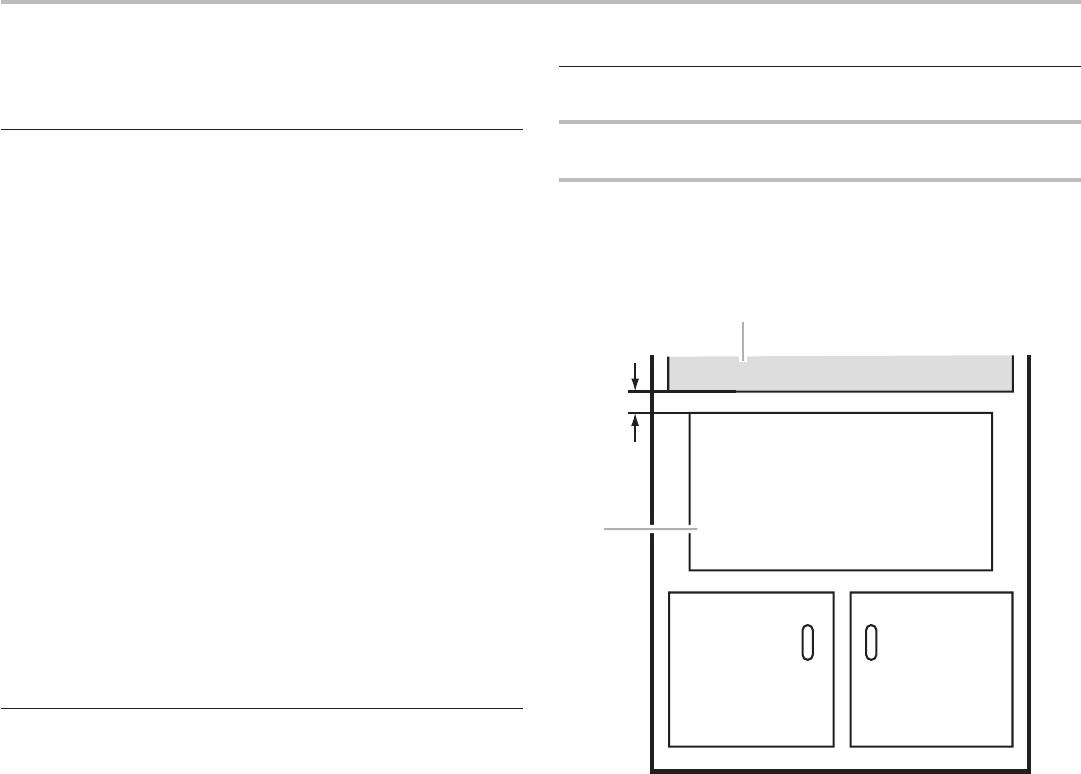

Minimum Wall Oven Combination Installation
Clearances
For proper installation, the following minimum clearances must
exist above and below the cutout opening.
NOTE : Upper oven must have heat deector kit installed to
direct exhaust away from microwave console (Refer to Wall Oven
Manual for Deector Kit Installation)
A. Upper oven cutout
B. Microwave drawer cutout
2" (5.1 cm)
A
B
